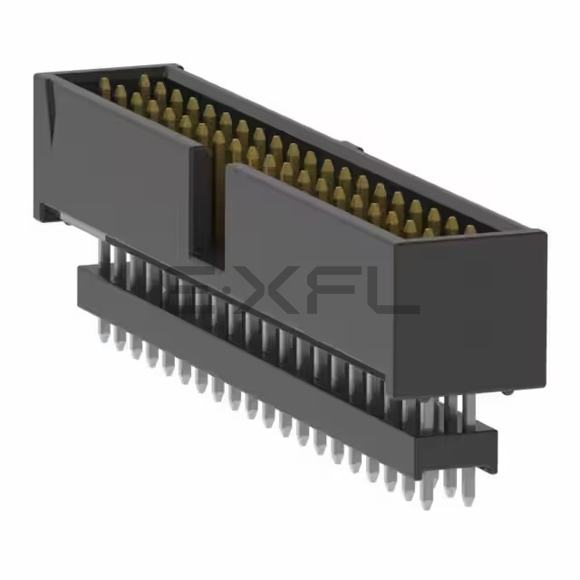

ZSS-120-01-L-D-515
Samtec Inc.
ZSS-120-01-L-D-515
Samtec Inc.
CONN HDR .100" 40POS
Reference Price (USD)
1+
$6.85000
500+
$6.7815
1000+
$6.713
1500+
$6.6445
2000+
$6.576
2500+
$6.5075
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
ZSS-120-01-L-D-515
$6.85
Product details
Product Attributes
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 40
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.115" (2.92mm)
- Overall Contact Length: 0.630" (16.00mm)
- Insulation Height: 0.515" (13.08mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
