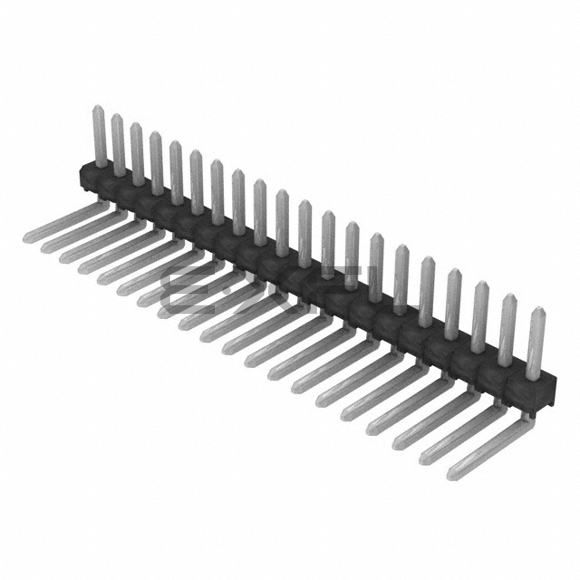

TSW-120-09-T-S-RA
Samtec Inc.
TSW-120-09-T-S-RA
Samtec Inc.
CONN HEADER R/A 20POS 2.54MM
Reference Price (USD)
1+
$2.30000
500+
$2.277
1000+
$2.254
1500+
$2.231
2000+
$2.208
2500+
$2.185
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
TSW-120-09-T-S-RA
$2.30
Product details
Product Attributes
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.290" (7.37mm)
- Overall Contact Length: -
- Insulation Height: 0.119" (3.02mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
