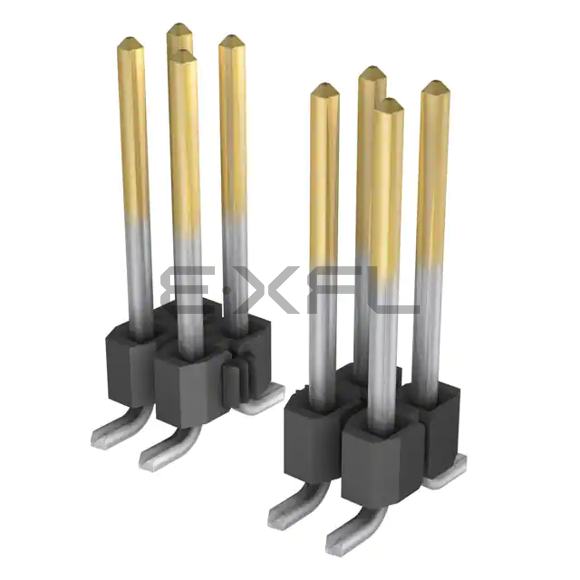

TSM-109-03-S-DV-P-TR
Samtec Inc.
TSM-109-03-S-DV-P-TR
Samtec Inc.
CONN HEADER SMD 18POS 2.54MM
Reference Price (USD)
1+
$4.87200
500+
$4.82328
1000+
$4.77456
1500+
$4.72584
2000+
$4.67712
2500+
$4.6284
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
TSM-109-03-S-DV-P-TR
$4.87
Product details
Product Attributes
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 18
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.420" (10.67mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Pick and Place
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
