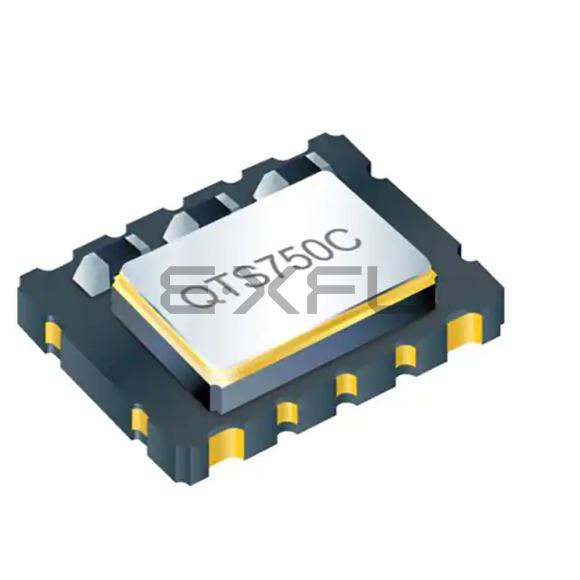

QTS750C-12.800MBO-T
QST
QTS750C-12.800MBO-T
QST
XTAL OSC VCTCXO 12.8000MHZ CMOS
Reference Price (USD)
1+
$8.50500
500+
$8.41995
1000+
$8.3349
1500+
$8.24985
2000+
$8.1648
2500+
$8.07975
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
QTS750C-12.800MBO-T
$8.50
Product details
QST's QTS750C-12.800MBO-T revolutionizes Oscillators performance, specifically engineered for automotive-grade clock distribution networks. This MEMS-based solution delivers unmatched reliability for safety-critical vehicle systems.The Crystal design incorporates shock-resistant MEMS structures that survive 50,000g mechanical stress, exceeding automotive crash standards.This VCTCXO implements ASIL-D compliant fault detection with <1 s failover time, critical for autonomous driving sensor fusion systems.Operating at 12.8 MHz with <0.5ps cycle-to-cycle jitter, the oscillator meets stringent requirements for LiDAR time-of-flight measurement.The CMOS stage features short-circuit protection and load-dump resilience for robust operation in 48V mild hybrid electrical systems.With 3.3V operating range, the device maintains timing accuracy during cold-crank conditions down to 3V.Achieving ±280ppb stability over 15-year vehicle lifespan, the oscillator eliminates the need for periodic calibration in ADAS cameras.Rated for -40°C ~ 85°C operation, the device maintains lock during rapid temperature transitions from engine heat soak.The 5mA ultra-low current consumption enables always-on operation in keyless entry systems without draining the battery.Surface Mount configuration incorporates conductive elastomer gaskets for EMI shielding in electric vehicle powertrains.The 4-SMD, No Lead package features conformal coating compatibility for under-hood installation in combustion engines.With 0.276" L x 0.197" W (7.00mm x 5.00mm) compact footprint, the oscillator fits within space-constrained infotainment head units.The 0.079" (2.00mm) low profile enables installation behind instrument clusters without interfering with airbag deployment.
Product Attributes
- Product Status: Active
- Base Resonator: Crystal
- Type: VCTCXO
- Frequency: 12.8 MHz
- Function: -
- Output: CMOS
- Voltage - Supply: 3.3V
- Frequency Stability: ±280ppb
- Absolute Pull Range (APR): -
- Operating Temperature: -40°C ~ 85°C
- Spread Spectrum Bandwidth: -
- Current - Supply (Max): 5mA
- Ratings: -
- Mounting Type: Surface Mount
- Package / Case: 4-SMD, No Lead
- Size / Dimension: 0.276" L x 0.197" W (7.00mm x 5.00mm)
- Height - Seated (Max): 0.079" (2.00mm)
