PCB-C-09-T-SMT
Adam Tech
PCB-C-09-T-SMT
Adam Tech
FPC/FFC CONNECTOR, LIF TYPE, 1.0
Reference Price (USD)
1+
$0.33000
500+
$0.3267
1000+
$0.3234
1500+
$0.3201
2000+
$0.3168
2500+
$0.3135
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

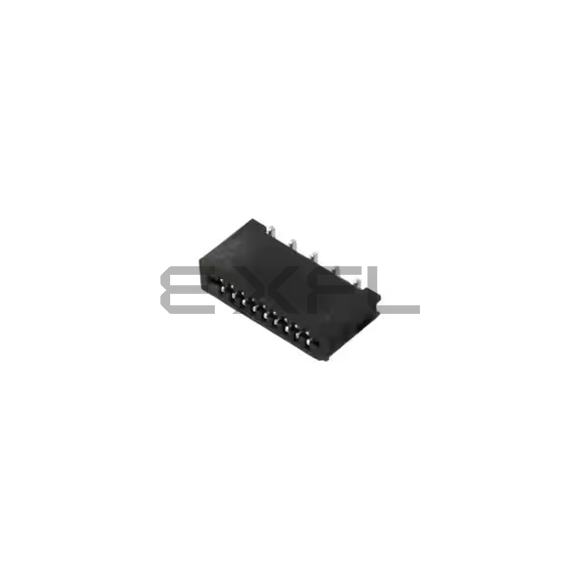

PCB-C-09-T-SMT
$0.33
Product details
Adam Tech's PCB-C-09-T-SMT delivers breakthrough performance in FFC, FPC (Flat Flexible) Connectors, specifically engineered for next-generation automotive electronics. This AEC-Q200 qualified solution combines automotive-grade reliability with high-speed data transmission capabilities.Supporting FFC, FPC configurations, the connector features vibration-resistant contact design. The automotive-optimized version withstands 40G mechanical shock.The Surface Mount implementation includes solder wicking prevention. The reflow-compatible design survives 3 rework cycles.With Contacts, Vertical - 2 Sided architecture, the solution provides 10Gbps signal integrity. The embedded ferrite beads suppress EMI/RFI interference.Offering 9 circuits, the connector integrates power and signal contacts. The hybrid design reduces connector count by 30%.The 0.039" (1.00mm) fine-pitch configuration enables 56G PAM4 signaling. The skew-controlled layout maintains <5ps intra-pair delay.Solder process features automotive-grade solder alloys. The intermetallic control prevents brittle joint formation.Accommodating 0.30mm cables, the connector provides 360 strain relief. The automotive-specific version resists engine compartment fluids.The 0.220" (5.59mm) low-profile design fits behind instrument panels. The crush-resistant housing withstands 500N point loads.Straight interface prevents salt spray penetration. The conformal coated version meets ISO 20653 protection standards.Using Phosphor Bronze alloys, the contacts maintain performance after thermal cycling. The stress-relieved temper resists micro-cracking.The Tin plating system prevents fretting corrosion. The automotive version features 0.76 m gold over 2.5 m nickel.Thermoplastic compound meets LV214 flame retardancy. The heat-stabilized formulation resists under-hood temperatures.Low Insertion Force (LIF) include misinsertion prevention. The automotive version incorporates CPA (Connector Position Assurance) features.Validated for -55°C ~ 85°C in automotive applications. The materials maintain properties after 1000 thermal cycles.Meeting UL94 V-0 standards, the materials produce minimal smoke. The halogen-free version meets VW 60330 requirements.
Product Attributes
- Product Status: Active
- Flat Flex Type: FFC, FPC
- Mounting Type: Surface Mount
- Connector/Contact Type: Contacts, Vertical - 2 Sided
- Number of Positions: 9
- Pitch: 0.039" (1.00mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.220" (5.59mm)
- Locking Feature: -
- Cable End Type: Straight
- Contact Material: Phosphor Bronze
- Contact Finish: Tin
- Housing Material: Thermoplastic
- Actuator Material: -
- Features: Low Insertion Force (LIF)
- Voltage Rating: -
- Operating Temperature: -55°C ~ 85°C
- Material Flammability Rating: UL94 V-0
