MEC8-150-02-LM-DV-A
Samtec Inc.
MEC8-150-02-LM-DV-A
Samtec Inc.

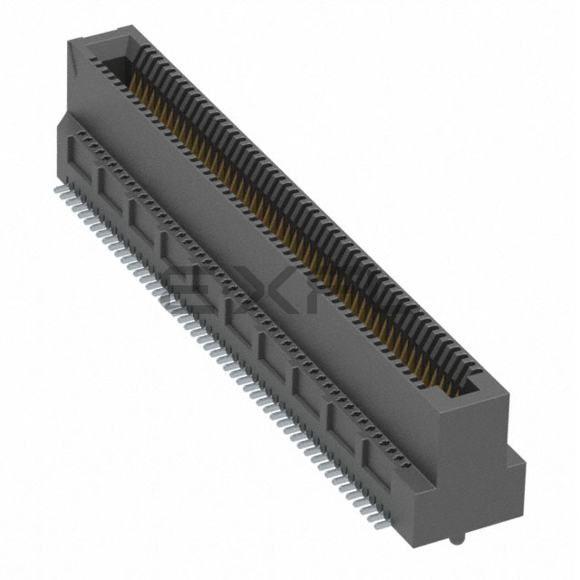

CONN EDGE DUAL FMALE 100P 0.031
Reference Price (USD)
1+
$12.10000
500+
$11.979
1000+
$11.858
1500+
$11.737
2000+
$11.616
2500+
$11.495
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
MEC8-150-02-LM-DV-A
$12.10
Product details
The MEC8-150-02-LM-DV-A by Samtec Inc. redefines performance standards in Card Edge Connectors - Edgeboard Connectors for automotive electronics. Specifically engineered for in-vehicle networks, this connector exceeds AEC-Q200 qualification requirements for harsh automotive environments.Supporting Non Specified - Dual Edge applications, the connector features anti-fretting design. The multi-point contact system prevents micro-motion induced wear in vibration-prone installations.The Female configuration includes tactile engagement feedback. Audible click and 5N snap force provide positive mating confirmation in low-visibility conditions.The 100 contact arrangement supports automotive Ethernet. Impedance-controlled differential pairs maintain 100 10% across all mating conditions.Compatible with 0.062" (1.57mm) cards, the connector features tapered entry. This self-centering design compensates for 0.5mm card misalignment during assembly.The 2 row configuration includes power contacts. These 3A-rated contacts feature 50% larger cross-section for reduced voltage drop.The 0.031" (0.80mm) pitch design enables miniaturization without compromising reliability. Micro-machined contacts maintain precise alignment despite thermal cycling.Dual readout capability supports automotive diagnostic systems. Dedicated sense contacts provide real-time connection integrity monitoring.The Board Guide package includes active alignment aids. Integrated guide pins facilitate blind mating during vehicle assembly line installation.The Surface Mount version includes IP6K9K sealing. Overmolded gaskets prevent water ingress during high-pressure vehicle washes.Solder process is compatible with automotive soldering profiles. The thermal mass design prevents tombstoning during reflow up to 260 C peak temperature.The Phosphor Bronze contacts exhibit excellent stress relaxation resistance. After 1,000 hours at 150 C, contact force remains >75% of initial value.Gold plating provides superior corrosion resistance. Testing per ISO 9227 shows no degradation after 96 hours salt spray exposure.With 10.0µin (0.25µm) gold plating, the contacts achieve <10m initial resistance. This low resistance minimizes power loss in 48V mild hybrid systems.The Hairpin Bellows design includes redundant contact points. This dual-touch system maintains conductivity even if one contact point becomes contaminated.The Black housing incorporates UV stabilizers for outdoor exposure. Colorfast testing shows E<1 after 1,000 hours Xenon arc exposure.Rated for -55°C ~ 125°C, the connector uses automotive-grade materials. The housing maintains mechanical integrity from -40 C cold starts to 125 C under-hood temperatures.
Product Attributes
- Product Status: Active
- Card Type: Non Specified - Dual Edge
- Gender: Female
- Number of Positions/Bay/Row: -
- Number of Positions: 100
- Card Thickness: 0.062" (1.57mm)
- Number of Rows: 2
- Pitch: 0.031" (0.80mm)
- Read Out: Dual
- Features: Board Guide
- Mounting Type: Surface Mount
- Termination: Solder
- Contact Material: Phosphor Bronze
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Contact Type: Hairpin Bellows
- Color: Black
- Flange Feature: -
- Operating Temperature: -55°C ~ 125°C
