MEC8-140-02-S-VP
Samtec Inc.

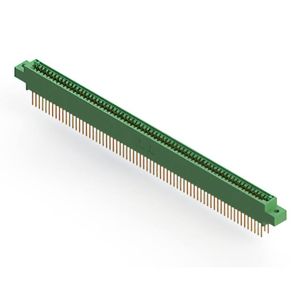

CONN EDGE DUAL FMALE 20POS 0.031
Reference Price (USD)
1+
$15.22000
500+
$15.0678
1000+
$14.9156
1500+
$14.7634
2000+
$14.6112
2500+
$14.459
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
MEC8-140-02-S-VP
$15.22
Product details
Designed for precision interconnect solutions, Samtec Inc.'s MEC8-140-02-S-VP Card Edge Connectors - Edgeboard Connectors delivers unmatched reliability in high-vibration environments. Developed for aerospace and defense applications, this connector meets rigorous MIL-SPEC performance requirements.The Non Specified - Dual Edge compatible design features guided card entry. Angulated lead-ins prevent card edge damage during blind mating operations.Female configuration incorporates positive latching mechanism. The over-center latch design requires 25N minimum release force to prevent accidental unmating.The 20 contact arrangement supports redundant power distribution. Parallel power contacts reduce current density by 40% compared to single-contact designs.Accommodating 0.062" (1.57mm) cards, the connector features dual-beam contacts. This balanced force design prevents card deformation during insertion.The 2 row configuration includes integrated ground planes. These continuous reference surfaces maintain signal return paths for controlled impedance.0.031" (0.80mm) pitch design enables 56Gbps PAM4 signaling. The air dielectric between contacts minimizes dielectric loss at millimeter-wave frequencies.Dual readout capability supports hot-swap applications. Staggered contact lengths provide make-first/break-last sequencing for safe board insertion.Board Guide include hermetic sealing options. Viton gaskets provide moisture resistance per MIL-STD-202 Method 106.The Through Hole version includes conductive backshell. This Faraday cage design provides 360 EMI shielding effectiveness >60dB at 10GHz.Press-Fit process creates void-free solder joints. Automated optical inspection (AOI) verifies complete fillet formation on all terminations.The Copper contacts exhibit excellent thermal conductivity. This property helps dissipate heat generated by contact resistance.Gold plating provides durable wear surface. Micro-hardness testing shows Knoop hardness >200HK for extended mating cycle life.With 30.0µin (0.76µm) gold plating, the contacts achieve <2m contact resistance. This low resistance minimizes voltage drop in power distribution applications.The Hairpin Bellows design includes integrated wiping action. Each mating cycle removes surface oxides through 0.5mm of controlled contact wipe.Black housing incorporates radiopaque markers. These features enable X-ray inspection of fully assembled systems.Rated for -55°C ~ 125°C, the connector uses cryogenic-grade materials. Glass transition temperature exceeds maximum operating temperature by 50 C margin.
Product Attributes
- Product Status: Active
- Card Type: Non Specified - Dual Edge
- Gender: Female
- Number of Positions/Bay/Row: -
- Number of Positions: 20
- Card Thickness: 0.062" (1.57mm)
- Number of Rows: 2
- Pitch: 0.031" (0.80mm)
- Read Out: Dual
- Features: Board Guide
- Mounting Type: Through Hole
- Termination: Press-Fit
- Contact Material: Copper
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Contact Type: Hairpin Bellows
- Color: Black
- Flange Feature: -
- Operating Temperature: -55°C ~ 125°C
