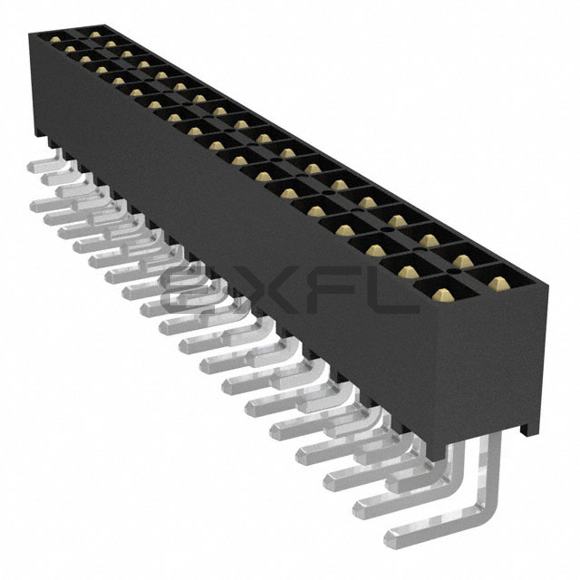

IPT1-118-01-S-D-RA
Samtec Inc.
IPT1-118-01-S-D-RA
Samtec Inc.
CONN HEADER R/A 36POS 2.54MM
Reference Price (USD)
1+
$11.30000
500+
$11.187
1000+
$11.074
1500+
$10.961
2000+
$10.848
2500+
$10.735
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
IPT1-118-01-S-D-RA
$11.30
Product details
Product Attributes
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 36
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.155" (3.94mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: -
- Insulation Height: 0.200" (5.08mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.3A per Contact
- Voltage Rating: 775VAC, 1095VDC
