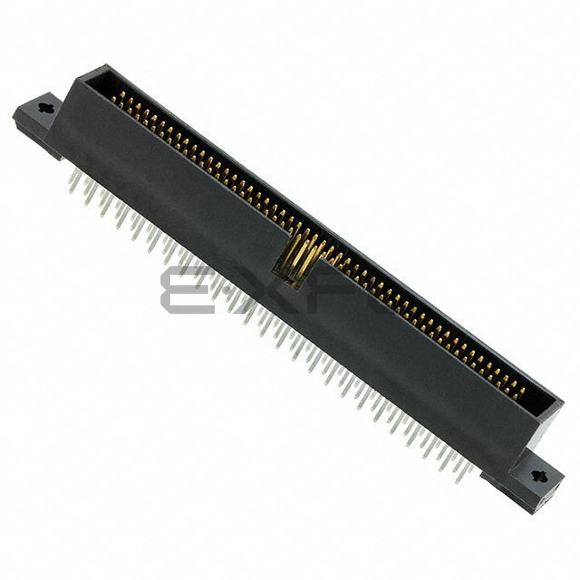

HIF6B-100PA-1.27DSA(71)

Product details

Product Attributes

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.050" (1.27mm)
• Number of Positions: 100
• Number of Rows: 2
• Row Spacing - Mating: 0.100" (2.54mm)
• Number of Positions Loaded: All
• Style: Board to Board
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Through Hole
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Length - Mating: 0.205" (5.21mm)
• Contact Length - Post: 0.110" (2.79mm)
• Overall Contact Length: -
• Insulation Height: 0.453" (11.50mm)
• Contact Shape: Square
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 8.00µin (0.203µm)
• Contact Finish - Post: Tin
• Contact Material: Brass
• Insulation Material: Polybutylene Terephthalate (PBT)
• Features: -
• Operating Temperature: -55°C ~ 85°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Black
• Current Rating (Amps): 0.5A
• Voltage Rating: 300V
