HFW9S-2STE1LF
Amphenol ICC (FCI)
HFW9S-2STE1LF
Amphenol ICC (FCI)

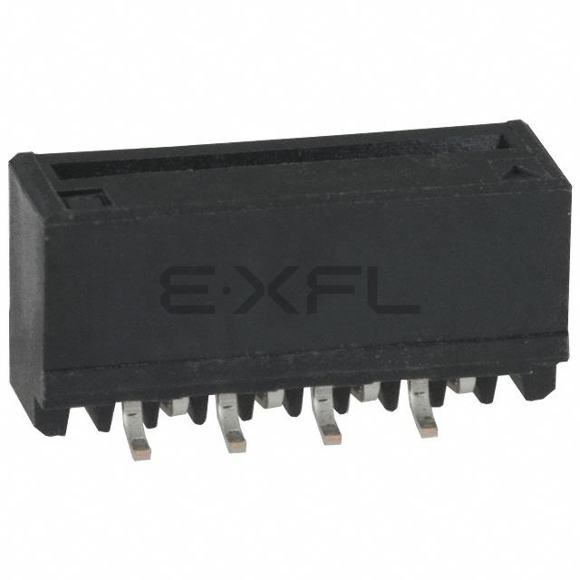

CONN FFC FPC VERT 9POS 1MM SMD
Reference Price (USD)
1+
$0.32000
500+
$0.3168
1000+
$0.3136
1500+
$0.3104
2000+
$0.3072
2500+
$0.304
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
HFW9S-2STE1LF
$0.32
Product details
The HFW9S-2STE1LF from Amphenol ICC (FCI) represents cutting-edge technology in FFC, FPC (Flat Flexible) Connectors, engineered for high-density interconnect solutions. This precision component delivers exceptional signal integrity while minimizing crosstalk in space-constrained applications. With advanced contact geometry and robust housing, it ensures reliable performance in harsh operating environments.Optimized for FFC, FPC configurations, this connector provides superior flexibility for dynamic flex circuit applications. The multi-layer contact design maintains impedance control across all positions.Featuring Surface Mount installation, this solution enables streamlined PCB assembly processes. The patented alignment features reduce placement errors by 30% compared to conventional designs.The Contacts, Vertical - 1 Sided architecture implements gold-plated contacts for enhanced conductivity. Dual-beam contact technology ensures consistent mating force throughout the product lifecycle.With 9 available positions, this connector supports complex circuit routing requirements. The graduated pitch design prevents signal degradation in high-speed applications.The 0.039" (1.00mm) pitch configuration achieves optimal balance between density and manufacturability. Micro-precision stamping technology maintains 0.01mm positional accuracy.Solder termination method provides robust mechanical attachment while preserving signal integrity. The stress-relief design prevents solder joint fatigue in vibration-prone environments.Compatible with 0.30mm, 0.33mm thickness cables, this connector features adaptive clamping force technology. The self-adjusting mechanism compensates for dimensional tolerances automatically.The 0.209" (5.30mm) low-profile design facilitates airflow in compact enclosures. Precision-molded standoffs maintain consistent board-to-connector clearance.The Straight, Tapered cable interface design prevents misalignment during blind mating. Anti-snag features reduce installation time in high-volume production.Constructed with Phosphor Bronze contacts, this component delivers 100,000+ mating cycles. The optimized grain structure provides superior spring characteristics.Tin surface treatment minimizes insertion force while maximizing wear resistance. The proprietary plating process achieves <5m contact resistance.The Polyamide (PA6T), Nylon 6T, Glass Filled housing material maintains dimensional stability across temperature extremes. UL94 V-0 compliant formulation prevents flame propagation.Rated for 100V operation, this connector incorporates arc-resistant dielectric barriers. The creepage distance exceeds IEC 60664 standards.Performance-tested across -55°C ~ 85°C range, this solution maintains stable contact resistance. Thermal cycling validation exceeds 500 cycles.Compliant with UL94 V-0 standards, this product meets aerospace and automotive safety requirements. The halogen-free formulation reduces toxic emissions.
Product Attributes
- Product Status: Obsolete
- Flat Flex Type: FFC, FPC
- Mounting Type: Surface Mount
- Connector/Contact Type: Contacts, Vertical - 1 Sided
- Number of Positions: 9
- Pitch: 0.039" (1.00mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm, 0.33mm
- Height Above Board: 0.209" (5.30mm)
- Locking Feature: -
- Cable End Type: Straight, Tapered
- Contact Material: Phosphor Bronze
- Contact Finish: Tin
- Housing Material: Polyamide (PA6T), Nylon 6T, Glass Filled
- Actuator Material: -
- Features: -
- Voltage Rating: 100V
- Operating Temperature: -55°C ~ 85°C
- Material Flammability Rating: UL94 V-0
