HF601-30-12
Yamaichi Electronics
HF601-30-12
Yamaichi Electronics

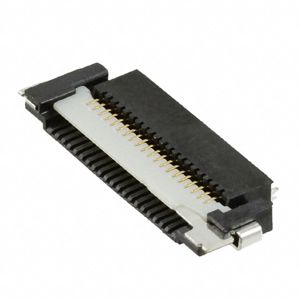

VERTICAL, 0.5PITCH,ZI,FPC/FFC CO
Reference Price (USD)
1+
$1.97000
500+
$1.9503
1000+
$1.9306
1500+
$1.9109
2000+
$1.8912
2500+
$1.8715
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
HF601-30-12
$1.97
Product details
The HF601-30-12 from Yamaichi Electronics represents the pinnacle of FFC, FPC (Flat Flexible) Connectors technology, designed for medical imaging equipment. This ultra-reliable interconnect solution combines precision signal integrity with biocompatible materials for life-critical applications.Optimized for FFC, FPC implementations, the connector features MRI-compatible materials. The non-magnetic construction prevents imaging artifacts.The Surface Mount configuration enables sterile field installation. The single-use version features breakaway mounting tabs.With Contacts, Vertical - 1 Sided design, the solution provides <0.5dB insertion loss. The matched-impedance construction preserves signal fidelity.Supporting 30 channels, the connector handles high-density sensor arrays. The isolated return paths prevent signal bleed-through.The 0.020" (0.50mm) micro-pitch arrangement enables 1024-channel connectivity. The laser-aligned contacts ensure <0.02mm positional accuracy.Solder method incorporates medical-grade solders. The lead-free formulation meets USP Class VI requirements.Compatible with 0.30mm flexible circuits, the connector withstands 10,000 flex cycles. The dynamic rating exceeds IEC 60601-1 standards.The 0.079" (2.00mm) ultra-low profile facilitates catheter integration. The radiolucent housing permits X-ray visualization.Featuring Flip Lock mechanism, the connector provides audible engagement confirmation. The color-coded system prevents misconnection.Using Copper Alloy alloys, the contacts resist sterilization chemicals. The passivated surface prevents ionic contamination.The Gold-Nickel plating ensures biocompatibility. The medical version features 1.27 m gold over nickel barrier.Liquid Crystal Polymer (LCP) formulation withstands autoclave cycles. The gamma-stable version maintains properties after 50kGy irradiation.Constructed from Polyamide (PA9T), Nylon 9T, the actuator operates in liquid environments. The steam-resistant version survives 1000 autoclave cycles.Solder Retention, Zero Insertion Force (ZIF) include integrated shielding for EMI protection. The patient-safe design limits leakage current to <10 A.Rated for 50V in medical applications, the connector exceeds IEC 60601-1 isolation requirements. The reinforced insulation withstands 4kV test voltages.Validated for -40°C ~ 85°C in sterilization cycles. The materials maintain flexibility at cryogenic storage temperatures.
Product Attributes
- Product Status: Active
- Flat Flex Type: FFC, FPC
- Mounting Type: Surface Mount
- Connector/Contact Type: Contacts, Vertical - 1 Sided
- Number of Positions: 30
- Pitch: 0.020" (0.50mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.079" (2.00mm)
- Locking Feature: Flip Lock
- Cable End Type: -
- Contact Material: Copper Alloy
- Contact Finish: Gold-Nickel
- Housing Material: Liquid Crystal Polymer (LCP)
- Actuator Material: Polyamide (PA9T), Nylon 9T
- Features: Solder Retention, Zero Insertion Force (ZIF)
- Voltage Rating: 50V
- Operating Temperature: -40°C ~ 85°C
- Material Flammability Rating: -
