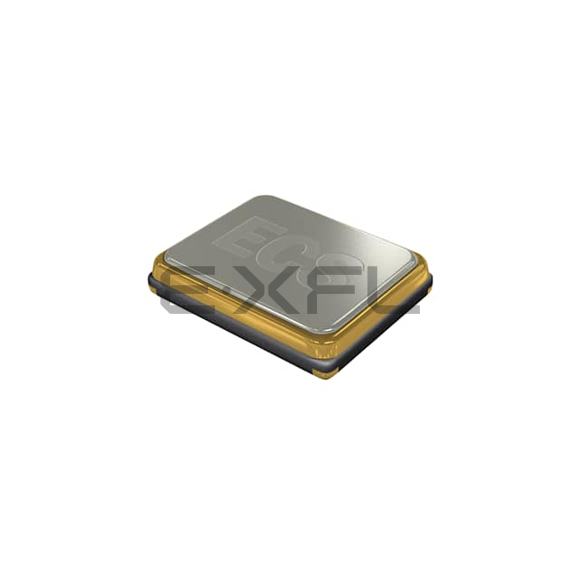

ECS-80-8-33Q-ADS-TR3
ECS Inc.
ECS-80-8-33Q-ADS-TR3
ECS Inc.
CRYSTAL 8.0000MHZ 8PF SMD
Reference Price (USD)
1+
$0.97000
500+
$0.9603
1000+
$0.9506
1500+
$0.9409
2000+
$0.9312
2500+
$0.9215
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
ECS-80-8-33Q-ADS-TR3
$0.97
Product details
ECS Inc.'s ECS-80-8-33Q-ADS-TR3 Crystals redefines reliability for automotive electronics, specifically engineered to meet the stringent requirements of advanced driver assistance systems (ADAS) and in-vehicle networking. Its robust design ensures flawless operation across the automotive temperature range and vibration profiles.As a MHz Crystal device, it provides the clock accuracy needed for high-speed automotive Ethernet and sensor fusion applications.Operating at 8 MHz, the crystal supports multiple automotive bus systems including CAN FD, FlexRay, and Automotive Ethernet.The ±100ppm stability performance guarantees reliable operation from arctic cold starts to desert heat soak conditions.With ±25ppm tolerance, it maintains precise timing for LiDAR synchronization and radar signal processing.The 8pF load capacitance configuration minimizes startup time while ensuring stable oscillation in all vehicle operating states.Featuring 500 Ohms ESR, the device optimizes power consumption for always-on safety systems without compromising signal quality.Utilizing Fundamental operation, it achieves the necessary spectral purity for automotive radar systems operating in the 77GHz band.Designed for -40°C ~ 125°C operation, the component exceeds typical automotive requirements for engine compartment applications.Fully compliant with AEC-Q200 standards, the component undergoes rigorous automotive qualification testing for mission-critical applications.The Surface Mount design incorporates anti-vibration features critical for under-the-hood electronic control units.The 4-SMD, No Lead package meets automotive-grade moisture resistance standards for reliability in all weather conditions.With compact 0.126" L x 0.098" W (3.20mm x 2.50mm) dimensions, it enables high-density designs in space-constrained infotainment systems.The 0.031" (0.80mm) low profile accommodates slim instrument cluster designs with tight z-height constraints.
Product Attributes
- Product Status: Active
- Type: MHz Crystal
- Frequency: 8 MHz
- Frequency Stability: ±100ppm
- Frequency Tolerance: ±25ppm
- Load Capacitance: 8pF
- ESR (Equivalent Series Resistance): 500 Ohms
- Operating Mode: Fundamental
- Operating Temperature: -40°C ~ 125°C
- Ratings: AEC-Q200
- Mounting Type: Surface Mount
- Package / Case: 4-SMD, No Lead
- Size / Dimension: 0.126" L x 0.098" W (3.20mm x 2.50mm)
- Height - Seated (Max): 0.031" (0.80mm)
