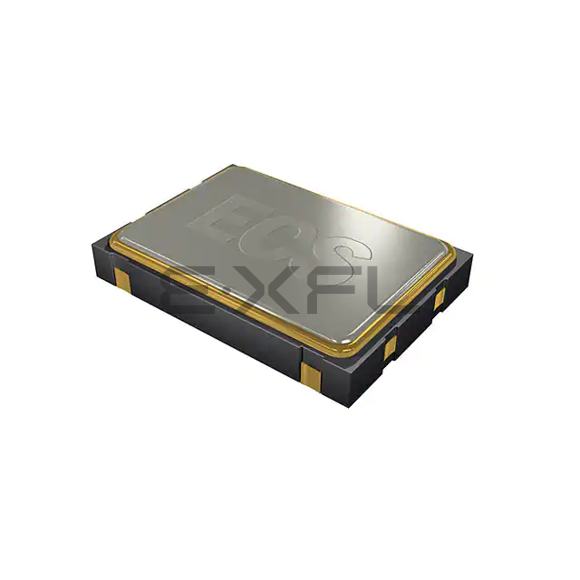

ECS-5032MV-120-BM-TR
ECS Inc.
ECS-5032MV-120-BM-TR
ECS Inc.
XTAL OSC XO 12MHZ HCMOS SMD
Reference Price (USD)
1+
$1.32000
500+
$1.3068
1000+
$1.2936
1500+
$1.2804
2000+
$1.2672
2500+
$1.254
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
ECS-5032MV-120-BM-TR
$1.32
Product details
ECS Inc.'s ECS-5032MV-120-BM-TR revolutionizes Oscillators performance, specifically engineered for automotive-grade clock distribution networks. This MEMS-based solution delivers unmatched reliability for safety-critical vehicle systems.The Crystal design incorporates shock-resistant MEMS structures that survive 50,000g mechanical stress, exceeding automotive crash standards.This XO (Standard) implements ASIL-D compliant fault detection with <1 s failover time, critical for autonomous driving sensor fusion systems.Operating at 12 MHz with <0.5ps cycle-to-cycle jitter, the oscillator meets stringent requirements for LiDAR time-of-flight measurement.Enable/Disable capability supports wake-on-event timing for energy-efficient telematics control units.The HCMOS stage features short-circuit protection and load-dump resilience for robust operation in 48V mild hybrid electrical systems.With 1.6V ~ 3.6V operating range, the device maintains timing accuracy during cold-crank conditions down to 3V.Achieving ±50ppm stability over 15-year vehicle lifespan, the oscillator eliminates the need for periodic calibration in ADAS cameras.Rated for -20°C ~ 70°C operation, the device maintains lock during rapid temperature transitions from engine heat soak.The 6mA ultra-low current consumption enables always-on operation in keyless entry systems without draining the battery.Surface Mount configuration incorporates conductive elastomer gaskets for EMI shielding in electric vehicle powertrains.The 4-SMD, No Lead package features conformal coating compatibility for under-hood installation in combustion engines.With 0.197" L x 0.126" W (5.00mm x 3.20mm) compact footprint, the oscillator fits within space-constrained infotainment head units.The 0.051" (1.30mm) low profile enables installation behind instrument clusters without interfering with airbag deployment.
Product Attributes
- Product Status: Active
- Base Resonator: Crystal
- Type: XO (Standard)
- Frequency: 12 MHz
- Function: Enable/Disable
- Output: HCMOS
- Voltage - Supply: 1.6V ~ 3.6V
- Frequency Stability: ±50ppm
- Absolute Pull Range (APR): -
- Operating Temperature: -20°C ~ 70°C
- Spread Spectrum Bandwidth: -
- Current - Supply (Max): 6mA
- Ratings: -
- Mounting Type: Surface Mount
- Package / Case: 4-SMD, No Lead
- Size / Dimension: 0.197" L x 0.126" W (5.00mm x 3.20mm)
- Height - Seated (Max): 0.051" (1.30mm)
