ECS-200-8-37CKM
ECS Inc.
ECS-200-8-37CKM
ECS Inc.

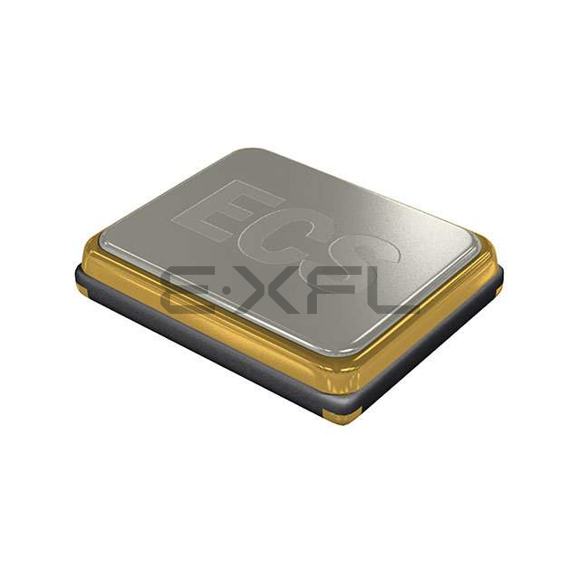

CRYSTAL 20.0000MHZ 8PF SMD
Reference Price (USD)
1+
$1.05000
500+
$1.0395
1000+
$1.029
1500+
$1.0185
2000+
$1.008
2500+
$0.9975
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
ECS-200-8-37CKM
$1.05
Product details
The ECS-200-8-37CKM by ECS Inc. delivers military-grade reliability for Crystals applications, engineered to exceed MIL-STD-883 specifications for shock, vibration, and thermal cycling. Its hardened design ensures mission-critical timing in defense systems ranging from encrypted communications to precision-guided munitions.This MHz Crystal oscillator incorporates ruggedized construction techniques that surpass commercial components in mechanical shock survival.Operating at 20 MHz, the device provides stable references for software-defined radios and electronic warfare systems.With ±10ppm stability, it maintains accuracy during rapid decompression events and high-G maneuvers.The ±10ppm tolerance meets stringent requirements for GPS-denied navigation and inertial measurement units.Configured with 8pF load capacitance, it compensates for cable effects in distributed military sensor networks.The 100 Ohms ESR remains stable despite extreme vibration profiles encountered in armored vehicle electronics.Utilizing Fundamental operation, it achieves the necessary EMI hardening for operation near high-power radar systems.Rated for -20°C ~ 70°C, the component performs reliably in desert, arctic, and tropical theater conditions.The Surface Mount design incorporates MIL-SPEC mounting provisions for vibration-resistant installation.Housed in a 4-SMD, No Lead package, it meets hermetic sealing requirements for operation in chemically hostile environments.With 0.079" L x 0.063" W (2.00mm x 1.60mm) dimensions, the compact design enables integration into soldier-worn electronics and UAV avionics.The 0.022" (0.55mm) low profile accommodates strict form factor requirements in missile guidance systems.
Product Attributes
- Product Status: Active
- Type: MHz Crystal
- Frequency: 20 MHz
- Frequency Stability: ±10ppm
- Frequency Tolerance: ±10ppm
- Load Capacitance: 8pF
- ESR (Equivalent Series Resistance): 100 Ohms
- Operating Mode: Fundamental
- Operating Temperature: -20°C ~ 70°C
- Ratings: -
- Mounting Type: Surface Mount
- Package / Case: 4-SMD, No Lead
- Size / Dimension: 0.079" L x 0.063" W (2.00mm x 1.60mm)
- Height - Seated (Max): 0.022" (0.55mm)
