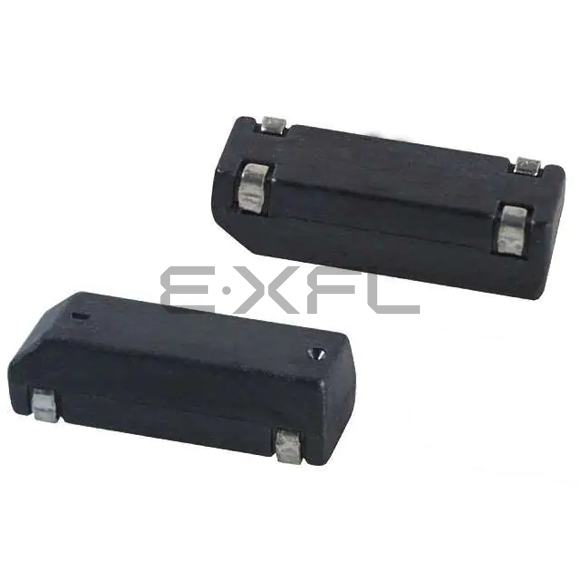

ECS-123.52-18-7SX
ECS Inc.
ECS-123.52-18-7SX
ECS Inc.
CRYSTAL 12.3520MHZ 18PF SMD
Reference Price (USD)
1+
$2.72700
500+
$2.69973
1000+
$2.67246
1500+
$2.64519
2000+
$2.61792
2500+
$2.59065
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
ECS-123.52-18-7SX
$2.73
Product details
ECS Inc.'s ECS-123.52-18-7SX Crystals redefines reliability for automotive electronics, specifically engineered to meet the stringent requirements of advanced driver assistance systems (ADAS) and in-vehicle networking. Its robust design ensures flawless operation across the automotive temperature range and vibration profiles.As a MHz Crystal device, it provides the clock accuracy needed for high-speed automotive Ethernet and sensor fusion applications.Operating at 12.352 MHz, the crystal supports multiple automotive bus systems including CAN FD, FlexRay, and Automotive Ethernet.The ±50ppm stability performance guarantees reliable operation from arctic cold starts to desert heat soak conditions.With ±30ppm tolerance, it maintains precise timing for LiDAR synchronization and radar signal processing.The 18pF load capacitance configuration minimizes startup time while ensuring stable oscillation in all vehicle operating states.Featuring 50 Ohms ESR, the device optimizes power consumption for always-on safety systems without compromising signal quality.Utilizing Fundamental operation, it achieves the necessary spectral purity for automotive radar systems operating in the 77GHz band.Designed for -10°C ~ 70°C operation, the component exceeds typical automotive requirements for engine compartment applications.The Surface Mount design incorporates anti-vibration features critical for under-the-hood electronic control units.The 4-SOJ, 9.40mm pitch package meets automotive-grade moisture resistance standards for reliability in all weather conditions.With compact 0.492" L x 0.181" W (12.50mm x 4.60mm) dimensions, it enables high-density designs in space-constrained infotainment systems.The 0.146" (3.70mm) low profile accommodates slim instrument cluster designs with tight z-height constraints.
Product Attributes
- Product Status: Active
- Type: MHz Crystal
- Frequency: 12.352 MHz
- Frequency Stability: ±50ppm
- Frequency Tolerance: ±30ppm
- Load Capacitance: 18pF
- ESR (Equivalent Series Resistance): 50 Ohms
- Operating Mode: Fundamental
- Operating Temperature: -10°C ~ 70°C
- Ratings: -
- Mounting Type: Surface Mount
- Package / Case: 4-SOJ, 9.40mm pitch
- Size / Dimension: 0.492" L x 0.181" W (12.50mm x 4.60mm)
- Height - Seated (Max): 0.146" (3.70mm)
