ECH350V-03P
Dinkle Corporation, USA
ECH350V-03P
Dinkle Corporation, USA

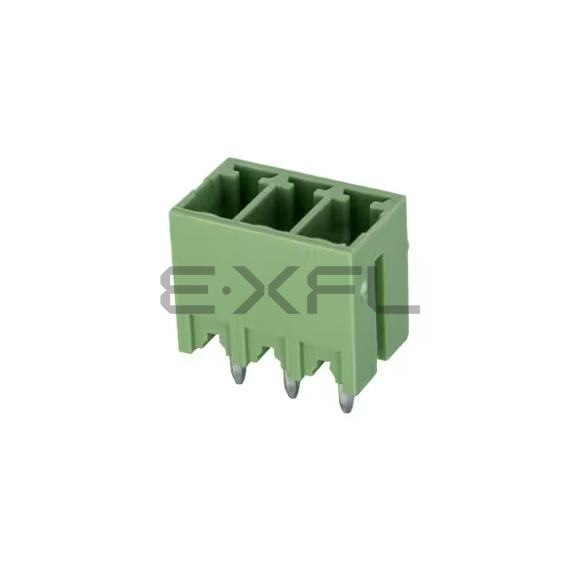

TERM BLK 3POS 3.50MM HDR
Reference Price (USD)
1+
$0.71000
500+
$0.7029
1000+
$0.6958
1500+
$0.6887
2000+
$0.6816
2500+
$0.6745
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
ECH350V-03P
$0.71
Product details
The ECH350V-03P by Dinkle Corporation, USA redefines Terminal Blocks - Headers, Plugs and Sockets performance for medical imaging equipment. This precision-engineered interconnect solution delivers exceptional signal fidelity in MRI and CT scanner applications while meeting stringent medical safety standards. The Terminal Blocks - Headers, Plugs and Sockets ensures reliable operation in life-critical diagnostic systems.Featuring Header, Male Pins, Shrouded (4 Side) construction, this component achieves ultra-low noise characteristics essential for sensitive analog signals. The shielded design provides 60dB better EMI rejection than standard medical connectors.Available in 3 positions, the modular architecture supports high-density sensor arrays. The symmetrical layout maintains impedance matching across all channels for accurate signal acquisition.With 3 positions per level, the optimized configuration minimizes crosstalk between adjacent analog and digital lines. This arrangement is critical for maintaining signal integrity in multi-channel medical devices.The 1 stacking option enables three-dimensional packaging in space-constrained medical equipment. Vertical integration reduces cable clutter while maintaining proper isolation distances.The 0.138" (3.50mm) pitch spacing exceeds medical isolation requirements for patient-connected equipment. The reinforced dielectric barriers prevent leakage currents in defibrillator-proof designs.Vertical options enable flexible PCB integration in portable medical devices. The low-profile variants minimize weight in wearable monitoring equipment.Utilizing Solder termination, the system ensures gas-tight connections for implantable devices. The hermetic sealing prevents fluid ingress in sterilization cycles.The Through Hole mounting complies with IEC 60601-1 standards for medical equipment. The secure latching mechanism prevents accidental disconnection during patient transport.Meeting 14A IEC standards, the design accommodates microcurrent measurements. The gold-plated contacts ensure stable readings below 1 A resolution.The 320 V certification includes testing for defibrillation pulses. The insulation system withstands 5kV transients without breakdown.Rated for 8 A leakage current, the design meets Class BF equipment requirements. The ultra-pure contact materials prevent electrochemical migration.With 300 V patient isolation rating, the insulation system exceeds 2x MOPP requirements. The material selection prevents dielectric absorption in humid environments.The Green housing uses medically approved pigments that withstand gamma radiation sterilization. The high-visibility colors enhance error-proofing in emergency situations.Operating across -40°C ~ 120°C range, the materials maintain flexibility in cryogenic applications. The design has been validated for liquid nitrogen exposure in MRI systems.Tin plating provides optimal biocompatibility for patient-connected applications. The surface treatment exceeds ISO 10993-1 cytotoxicity requirements.
Product Attributes
- Product Status: Active
- Type: Header, Male Pins, Shrouded (4 Side)
- Number of Positions: 3
- Positions Per Level: 3
- Number of Levels: 1
- Pitch: 0.138" (3.50mm)
- Header Orientation: Vertical
- Plug Wire Entry: -
- Termination Style: Solder
- Mounting Type: Through Hole
- Current - IEC: 14A
- Voltage - IEC: 320 V
- Current - UL: 8 A
- Voltage - UL: 300 V
- Wire Gauge or Range - AWG: -
- Wire Gauge or Range - mm²: -
- Color: Green
- Operating Temperature: -40°C ~ 120°C
- Contact Mating Finish: Tin
- Features: -
