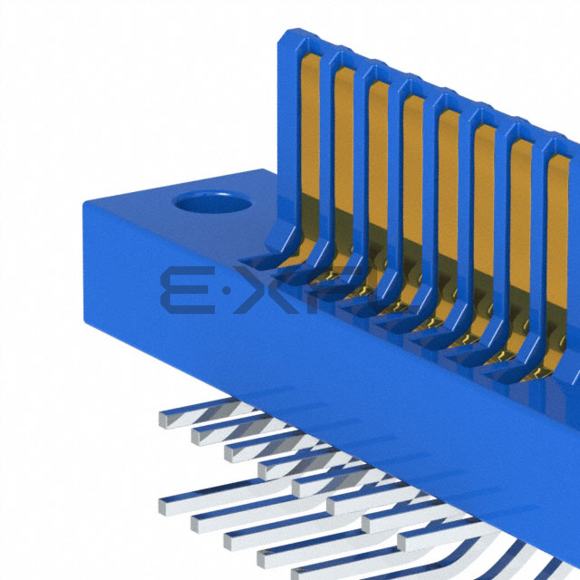

ECC19MMVD
Sullins Connector Solutions
ECC19MMVD
Sullins Connector Solutions
CONN CARDEDGE MALE 38POS 0.100
Reference Price (USD)
1+
$7.53300
500+
$7.45767
1000+
$7.38234
1500+
$7.30701
2000+
$7.23168
2500+
$7.15635
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
ECC19MMVD
$7.53
Product details
Designed for precision interconnect solutions, Sullins Connector Solutions's ECC19MMVD Card Edge Connectors - Edgeboard Connectors delivers unmatched reliability in high-vibration environments. Developed for aerospace and defense applications, this connector meets rigorous MIL-SPEC performance requirements.The Fits Female Edgecards compatible design features guided card entry. Angulated lead-ins prevent card edge damage during blind mating operations.Male configuration incorporates positive latching mechanism. The over-center latch design requires 25N minimum release force to prevent accidental unmating.With 19 contacts per bay, the connector achieves 98% contact engagement probability. Statistical process controls maintain 0.002" contact position tolerance.The 38 contact arrangement supports redundant power distribution. Parallel power contacts reduce current density by 40% compared to single-contact designs.Accommodating 0.062" (1.57mm) cards, the connector features dual-beam contacts. This balanced force design prevents card deformation during insertion.The 2 row configuration includes integrated ground planes. These continuous reference surfaces maintain signal return paths for controlled impedance.0.100" (2.54mm) pitch design enables 56Gbps PAM4 signaling. The air dielectric between contacts minimizes dielectric loss at millimeter-wave frequencies.Dual readout capability supports hot-swap applications. Staggered contact lengths provide make-first/break-last sequencing for safe board insertion.The Through Hole, Right Angle version includes conductive backshell. This Faraday cage design provides 360 EMI shielding effectiveness >60dB at 10GHz.Solder process creates void-free solder joints. Automated optical inspection (AOI) verifies complete fillet formation on all terminations.The Phosphor Bronze contacts exhibit excellent thermal conductivity. This property helps dissipate heat generated by contact resistance.Gold plating provides durable wear surface. Micro-hardness testing shows Knoop hardness >200HK for extended mating cycle life.With 30.0µin (0.76µm) gold plating, the contacts achieve <2m contact resistance. This low resistance minimizes voltage drop in power distribution applications.The Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia includes vibration-resistant fasteners. Locking thread inserts prevent loosening under 15G random vibration.Rated for -65°C ~ 125°C, the connector uses cryogenic-grade materials. Glass transition temperature exceeds maximum operating temperature by 50 C margin.
Product Attributes
- Product Status: Active
- Card Type: Fits Female Edgecards
- Gender: Male
- Number of Positions/Bay/Row: 19
- Number of Positions: 38
- Card Thickness: 0.062" (1.57mm)
- Number of Rows: 2
- Pitch: 0.100" (2.54mm)
- Read Out: Dual
- Features: -
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Contact Material: Phosphor Bronze
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Contact Type: -
- Color: -
- Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia
- Operating Temperature: -65°C ~ 125°C
