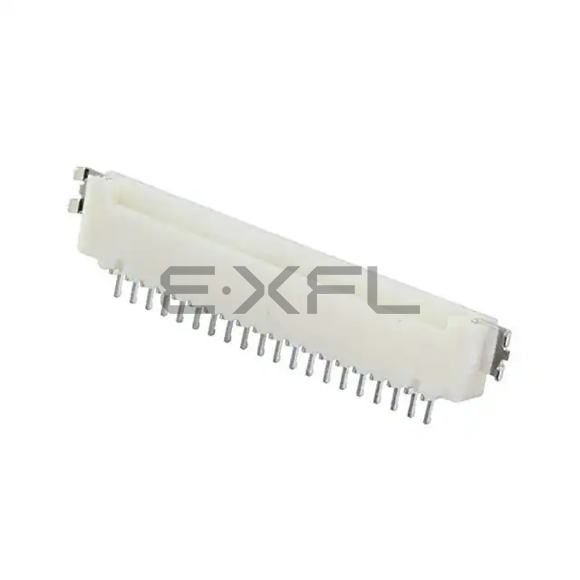

DF14H-20P-1.25H(56)
Hirose Electric Co Ltd
DF14H-20P-1.25H(56)
Hirose Electric Co Ltd
CONN HEADER BRD EDGE 20P 1.25MM
Reference Price (USD)
1+
$2.11000
500+
$2.0889
1000+
$2.0678
1500+
$2.0467
2000+
$2.0256
2500+
$2.0045
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
DF14H-20P-1.25H(56)
$2.11
Product details
Product Attributes
- Product Status: Obsolete
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 20
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Board Edge, Cutout; Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.086" (2.20mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.094" (2.40mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.90µin (0.099µm)
- Contact Finish - Post: -
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: Solder Retention
- Operating Temperature: -35°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Beige
- Current Rating (Amps): 1A
- Voltage Rating: 150V
