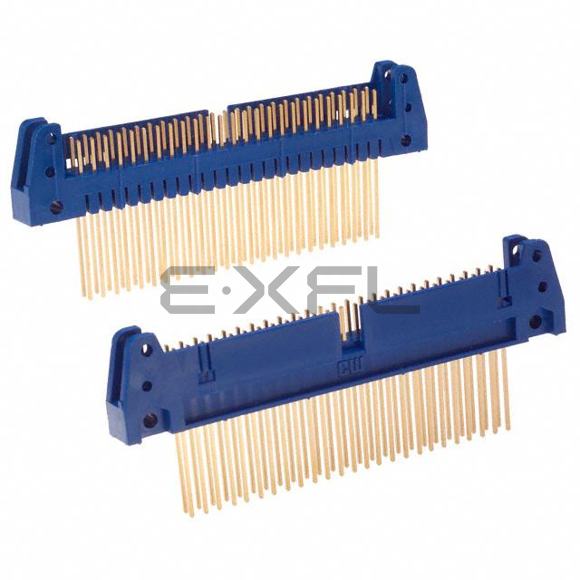

CWN-370-50-0000

Product details

Product Attributes

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.100" (2.54mm)
• Number of Positions: 50
• Number of Rows: 2
• Row Spacing - Mating: 0.100" (2.54mm)
• Number of Positions Loaded: All
• Style: Board to Cable/Wire
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Through Hole
• Termination: Wire Wrap
• Fastening Type: Push-Pull
• Contact Length - Mating: 0.240" (6.10mm)
• Contact Length - Post: 0.610" (15.49mm)
• Overall Contact Length: -
• Insulation Height: 0.681" (17.30mm)
• Contact Shape: Circular
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 10.0µin (0.25µm)
• Contact Finish - Post: Nickel
• Contact Material: Phosphor Bronze
• Insulation Material: Thermoplastic
• Features: Keying Slot, Mounting Flange
• Operating Temperature: -55°C ~ 125°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Blue
• Current Rating (Amps): 1A
• Voltage Rating: -
