CF24182V0R0-NH
Cvilux USA
CF24182V0R0-NH
Cvilux USA
CF24 SERIES 0.50MM(.020") LIF TO
Reference Price (USD)
1+
$0.49000
500+
$0.4851
1000+
$0.4802
1500+
$0.4753
2000+
$0.4704
2500+
$0.4655
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

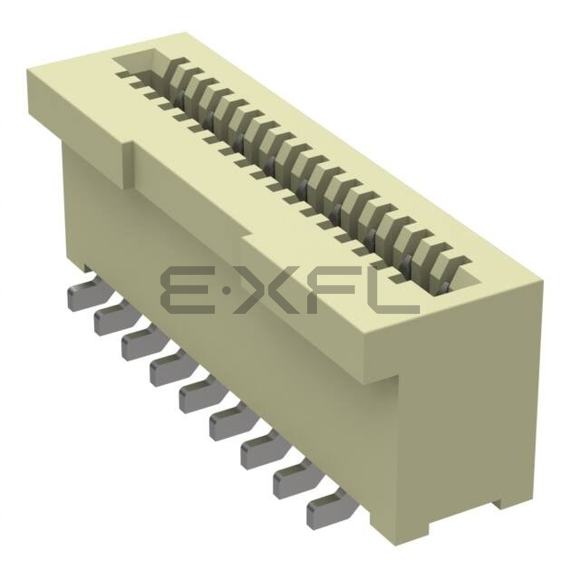

CF24182V0R0-NH
$0.49
Product details
Cvilux USA's CF24182V0R0-NH delivers breakthrough performance in FFC, FPC (Flat Flexible) Connectors, specifically engineered for next-generation automotive electronics. This AEC-Q200 qualified solution combines automotive-grade reliability with high-speed data transmission capabilities.Supporting FFC, FPC configurations, the connector features vibration-resistant contact design. The automotive-optimized version withstands 40G mechanical shock.The Surface Mount implementation includes solder wicking prevention. The reflow-compatible design survives 3 rework cycles.With Contacts, Vertical - 1 Sided architecture, the solution provides 10Gbps signal integrity. The embedded ferrite beads suppress EMI/RFI interference.Offering 18 circuits, the connector integrates power and signal contacts. The hybrid design reduces connector count by 30%.The 0.020" (0.50mm) fine-pitch configuration enables 56G PAM4 signaling. The skew-controlled layout maintains <5ps intra-pair delay.Solder process features automotive-grade solder alloys. The intermetallic control prevents brittle joint formation.Accommodating 0.30mm cables, the connector provides 360 strain relief. The automotive-specific version resists engine compartment fluids.The 0.165" (4.20mm) low-profile design fits behind instrument panels. The crush-resistant housing withstands 500N point loads.Straight interface prevents salt spray penetration. The conformal coated version meets ISO 20653 protection standards.Using Phosphor Bronze alloys, the contacts maintain performance after thermal cycling. The stress-relieved temper resists micro-cracking.The Gold plating system prevents fretting corrosion. The automotive version features 0.76 m gold over 2.5 m nickel.Polyamide (PA6T), Nylon 6T, Halogen Free compound meets LV214 flame retardancy. The heat-stabilized formulation resists under-hood temperatures.Constructed from Polyamide (PA6T), Nylon 6T, Halogen Free, the actuator operates at -40 C without brittleness. The glass-fiber reinforced version withstands door slam vibrations.Low Insertion Force (LIF), Pick and Place Cap include misinsertion prevention. The automotive version incorporates CPA (Connector Position Assurance) features.Rated for 50V in 48V systems, the connector exceeds ISO 16750-2 requirements. The arc-quenching design prevents sustained discharges.Validated for -25°C ~ 85°C in automotive applications. The materials maintain properties after 1000 thermal cycles.Meeting UL94 V-0 standards, the materials produce minimal smoke. The halogen-free version meets VW 60330 requirements.
Product Attributes
- Product Status: Active
- Flat Flex Type: FFC, FPC
- Mounting Type: Surface Mount
- Connector/Contact Type: Contacts, Vertical - 1 Sided
- Number of Positions: 18
- Pitch: 0.020" (0.50mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.165" (4.20mm)
- Locking Feature: -
- Cable End Type: Straight
- Contact Material: Phosphor Bronze
- Contact Finish: Gold
- Housing Material: Polyamide (PA6T), Nylon 6T, Halogen Free
- Actuator Material: Polyamide (PA6T), Nylon 6T, Halogen Free
- Features: Low Insertion Force (LIF), Pick and Place Cap
- Voltage Rating: 50V
- Operating Temperature: -25°C ~ 85°C
- Material Flammability Rating: UL94 V-0
