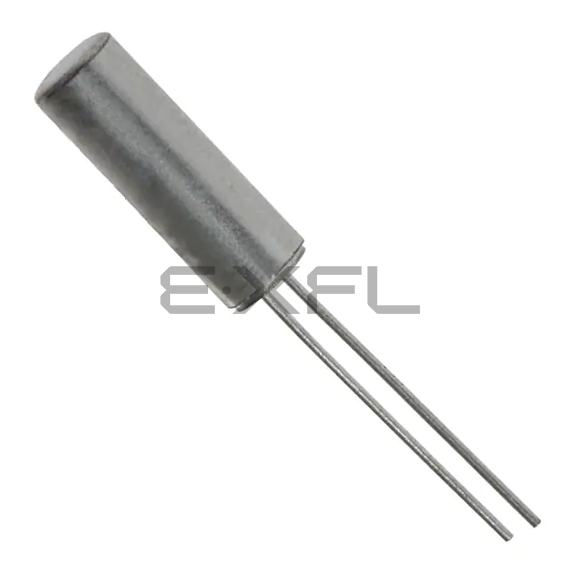

CA-301 54.0138M-C: PB FREE
EPSON
CA-301 54.0138M-C: PB FREE
EPSON
CRYSTAL 54.0138MHZ 18PF TH
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
CA-301 54.0138M-C: PB FREE
$0.00
Product details
EPSON's CA-301 54.0138M-C: PB FREE Crystals redefines reliability for automotive electronics, specifically engineered to meet the stringent requirements of advanced driver assistance systems (ADAS) and in-vehicle networking. Its robust design ensures flawless operation across the automotive temperature range and vibration profiles.As a MHz Crystal device, it provides the clock accuracy needed for high-speed automotive Ethernet and sensor fusion applications.Operating at 54.0138 MHz, the crystal supports multiple automotive bus systems including CAN FD, FlexRay, and Automotive Ethernet.The ±30ppm stability performance guarantees reliable operation from arctic cold starts to desert heat soak conditions.With ±30ppm tolerance, it maintains precise timing for LiDAR synchronization and radar signal processing.The 18pF load capacitance configuration minimizes startup time while ensuring stable oscillation in all vehicle operating states.Featuring 80 Ohms ESR, the device optimizes power consumption for always-on safety systems without compromising signal quality.Utilizing 3rd Overtone operation, it achieves the necessary spectral purity for automotive radar systems operating in the 77GHz band.Designed for -20°C ~ 70°C operation, the component exceeds typical automotive requirements for engine compartment applications.The Through Hole design incorporates anti-vibration features critical for under-the-hood electronic control units.The Cylindrical Can, Radial package meets automotive-grade moisture resistance standards for reliability in all weather conditions.With compact 0.122" Dia x 0.350" L (3.10mm x 8.90mm) dimensions, it enables high-density designs in space-constrained infotainment systems.The 0.350" (8.90mm) low profile accommodates slim instrument cluster designs with tight z-height constraints.
Product Attributes
- Product Status: Obsolete
- Type: MHz Crystal
- Frequency: 54.0138 MHz
- Frequency Stability: ±30ppm
- Frequency Tolerance: ±30ppm
- Load Capacitance: 18pF
- ESR (Equivalent Series Resistance): 80 Ohms
- Operating Mode: 3rd Overtone
- Operating Temperature: -20°C ~ 70°C
- Ratings: -
- Mounting Type: Through Hole
- Package / Case: Cylindrical Can, Radial
- Size / Dimension: 0.122" Dia x 0.350" L (3.10mm x 8.90mm)
- Height - Seated (Max): 0.350" (8.90mm)
