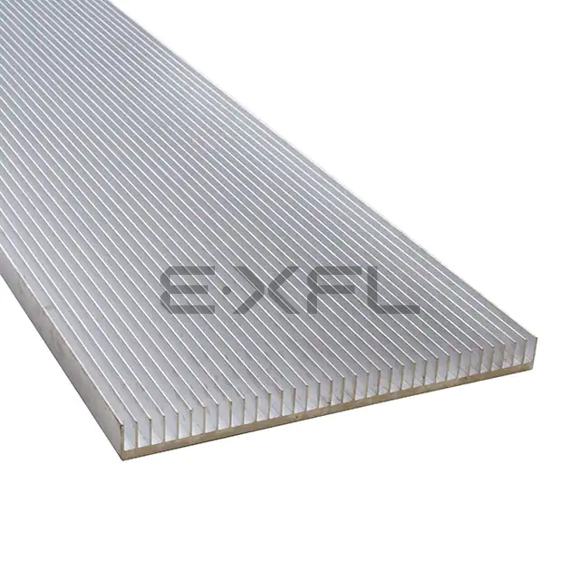

HEATSINK AL6063 1220X188X16.5MM
Reference Price (USD)
1+
$208.21000
500+
$206.1279
1000+
$204.0458
1500+
$201.9637
2000+
$199.8816
2500+
$197.7995
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
ATS-EXL424-1220-R0
$208.21
Product details
Advanced Thermal Solutions Inc.'s ATS-EXL424-1220-R0 offers military-grade thermal solutions in the Thermal - Heat Sinks segment, specifically developed for aerospace and defense applications. This ruggedized design exceeds stringent military specifications while delivering exceptional thermal performance in extreme environments.The Board Level Vertical Extrusion configuration withstands 15g vibration per MIL-STD-810H. Unlike commercial designs, this variant maintains thermal contact under combined thermal and mechanical stress.The Solderable Feet attachment meets IPC-CC-830 requirements for high-reliability soldering. The design survives 1000+ thermal cycles from -55 C to +125 C without joint degradation.Angled Fins configuration delivers {Thermal Resistance @ Forced Air Flow} in reverse airflow conditions common in aircraft. The aerodynamic profile reduces pressure drop by 18% compared to straight fins.The 48.032" (1220.00mm) dimension complies with ARINC 600 rack standards for avionics. The design includes provisions for conductive cooling to cold plates in liquid-cooled systems.With 7.402" (188.00mm) coverage, the solution meets SWaP-C constraints in military electronics. The lightweight construction reduces overall system weight by up to 30% compared to traditional designs.Optimized 0.650" (16.51mm) ensures performance in thin-atmosphere conditions. The fin geometry is validated through computational fluid dynamics at 0.2atm pressure.The 0.09°C/W @ 200 LFM is qualified under MIL-STD-810G sand/dust conditions. The design prevents performance degradation despite particulate exposure.The 4.00°C/W specification enables operation during cooling system failures. The design maintains critical components below 100 C in zero-airflow conditions for 60 minutes.AavSHIELD 3C coated Aluminum provides EMI/RFI shielding exceeding MIL-STD-461G requirements. The material maintains thermal performance after salt fog exposure per MIL-STD-810G.Tin-plated finish ensures solderability after long-term storage per MIL-STD-2073-1. The surface treatment provides corrosion protection in naval environments.
Product Attributes
- Product Status: Active
- Type: Top Mount, Extrusion
- Package Cooled: -
- Attachment Method: Adhesive
- Shape: Rectangular, Fins
- Length: 48.032" (1220.00mm)
- Width: 7.402" (188.00mm)
- Diameter: -
- Fin Height: 0.650" (16.51mm)
- Power Dissipation @ Temperature Rise: -
- Thermal Resistance @ Forced Air Flow: 0.09°C/W @ 200 LFM
- Thermal Resistance @ Natural: 4.00°C/W
- Material: Aluminum
- Material Finish: Degreased
