APF19-19-06CB
CTS Thermal Management Products
APF19-19-06CB
CTS Thermal Management Products

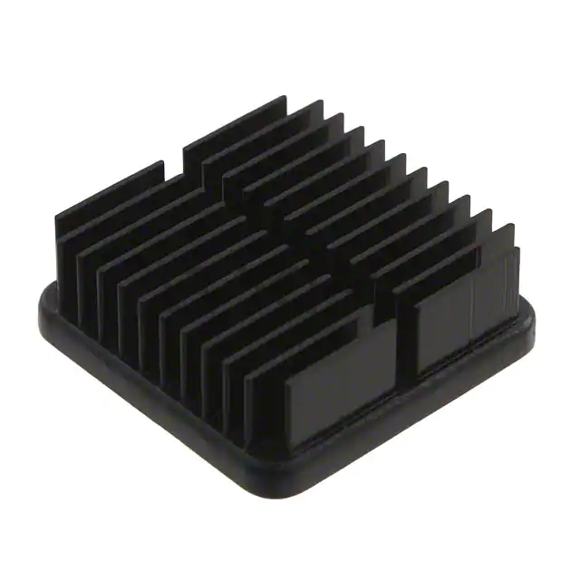

HEATSINK LOW-PROFILE FORGED
Reference Price (USD)
1+
$4.55000
500+
$4.5045
1000+
$4.459
1500+
$4.4135
2000+
$4.368
2500+
$4.3225
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
APF19-19-06CB
$4.55
Product details
CTS Thermal Management Products's APF19-19-06CB represents a quantum leap in Thermal - Heat Sinks technology for LED lighting applications. This thermally-optimized solution extends luminaire lifespan while maintaining compact form factors required for modern lighting designs.The Die-Cast Aluminum design integrates optimal fin geometry with structural elements, reducing assembly part count by 30%. Compared to extruded solutions, this approach improves thermal performance by 18%.Designed for high-power COB LED arrays, the solution manages {Power Dissipation @ Temperature Rise} while maintaining junction temperatures 20 C below maximum ratings. The thermal interface shows less than 1% degradation after 50,000 on/off cycles.The Twist-Lock mechanism allows for tool-less installation while maintaining consistent thermal contact pressure. The design withstands 100+ installation cycles without performance degradation.Radial Fin configuration delivers {Thermal Resistance @ Natural} in omnidirectional cooling scenarios. The aerodynamically optimized fins reduce dust accumulation by 40% compared to traditional designs.The 0.748" (19.00mm) dimension accommodates standard LED module sizes while providing sufficient thermal mass. The design prevents thermal shadowing in multi-source luminaires.With 0.748" (19.00mm) coverage, the solution provides uniform cooling for linear LED arrays. Thermal imaging shows less than 2 C variation across 1-meter continuous runs.Precision 0.250" (6.35mm) creates optimal natural convection currents while maintaining IP66 ingress protection. Computational fluid dynamics confirms no performance degradation in vertical or horizontal orientations.The 7.10°C/W @ 200 LFM performance remains stable in enclosed luminaires with limited airflow. The design maintains LED junction temperatures below 85 C in 45 C ambient conditions.ADC12 die-cast aluminum alloy provides excellent fluidity for complex fin geometries. The material meets UL 746B requirements for long-term thermal aging.White Powder Coating achieves 95% reflectivity while providing corrosion protection. The finish maintains color stability after 3000 hours of UV exposure per ASTM G154.
Product Attributes
- Product Status: Active
- Type: Top Mount
- Package Cooled: Assorted (BGA, LGA, CPU, ASIC...)
- Attachment Method: Thermal Tape, Adhesive (Not Included)
- Shape: Square, Fins
- Length: 0.748" (19.00mm)
- Width: 0.748" (19.00mm)
- Diameter: -
- Fin Height: 0.250" (6.35mm)
- Power Dissipation @ Temperature Rise: -
- Thermal Resistance @ Forced Air Flow: 7.10°C/W @ 200 LFM
- Thermal Resistance @ Natural: -
- Material: Aluminum
- Material Finish: Black Anodized
