ABM12W-28.6364MHZ-4-D2X-T3
Abracon LLC
ABM12W-28.6364MHZ-4-D2X-T3
Abracon LLC

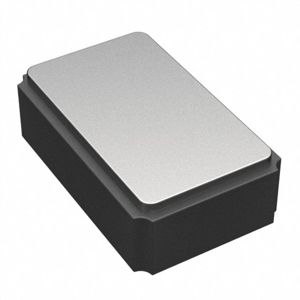

CRYSTAL 28.6364MHZ 4PF SMD
Reference Price (USD)
1+
$0.63413
500+
$0.6277887
1000+
$0.6214474
1500+
$0.6151061
2000+
$0.6087648
2500+
$0.6024235
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
ABM12W-28.6364MHZ-4-D2X-T3
$0.63
Product details
The ABM12W-28.6364MHZ-4-D2X-T3 by Abracon LLC delivers military-grade reliability for Crystals applications, engineered to exceed MIL-STD-883 specifications for shock, vibration, and thermal cycling. Its hardened design ensures mission-critical timing in defense systems ranging from encrypted communications to precision-guided munitions.This MHz Crystal oscillator incorporates ruggedized construction techniques that surpass commercial components in mechanical shock survival.Operating at 28.6364 MHz, the device provides stable references for software-defined radios and electronic warfare systems.With ±20ppm stability, it maintains accuracy during rapid decompression events and high-G maneuvers.The ±20ppm tolerance meets stringent requirements for GPS-denied navigation and inertial measurement units.Configured with 4pF load capacitance, it compensates for cable effects in distributed military sensor networks.The 150 Ohms ESR remains stable despite extreme vibration profiles encountered in armored vehicle electronics.Utilizing Fundamental operation, it achieves the necessary EMI hardening for operation near high-power radar systems.Rated for -40°C ~ 85°C, the component performs reliably in desert, arctic, and tropical theater conditions.The Surface Mount design incorporates MIL-SPEC mounting provisions for vibration-resistant installation.Housed in a 4-SMD, No Lead package, it meets hermetic sealing requirements for operation in chemically hostile environments.With 0.063" L x 0.047" W (1.60mm x 1.20mm) dimensions, the compact design enables integration into soldier-worn electronics and UAV avionics.The 0.016" (0.40mm) low profile accommodates strict form factor requirements in missile guidance systems.
Product Attributes
- Product Status: Active
- Type: MHz Crystal
- Frequency: 28.6364 MHz
- Frequency Stability: ±20ppm
- Frequency Tolerance: ±20ppm
- Load Capacitance: 4pF
- ESR (Equivalent Series Resistance): 150 Ohms
- Operating Mode: Fundamental
- Operating Temperature: -40°C ~ 85°C
- Ratings: -
- Mounting Type: Surface Mount
- Package / Case: 4-SMD, No Lead
- Size / Dimension: 0.063" L x 0.047" W (1.60mm x 1.20mm)
- Height - Seated (Max): 0.016" (0.40mm)
