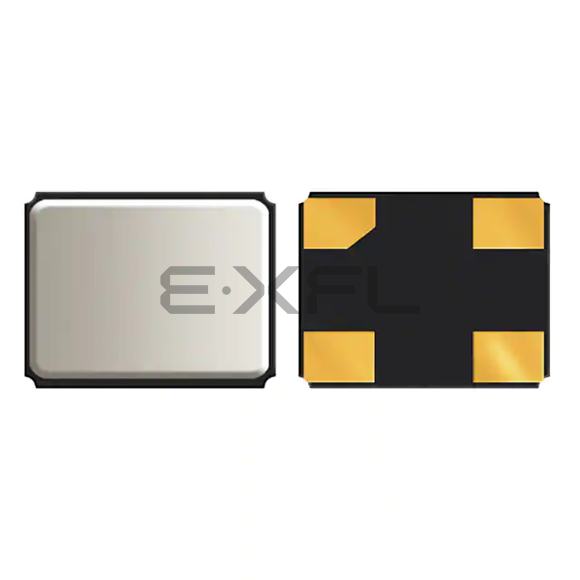

ABM10-30.000MHZ-E20-T
Abracon LLC
ABM10-30.000MHZ-E20-T
Abracon LLC
CRYSTAL 30.0000MHZ 10PF SMD
Reference Price (USD)
1+
$1.48000
500+
$1.4652
1000+
$1.4504
1500+
$1.4356
2000+
$1.4208
2500+
$1.406
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
ABM10-30.000MHZ-E20-T
$1.48
Product details
The ABM10-30.000MHZ-E20-T by Abracon LLC revolutionizes Crystals technology for aerospace applications, featuring radiation-hardened design and exceptional phase noise performance. Developed for satellite communication systems, this component ensures precise timing in the most demanding space environments while maintaining signal integrity across wide temperature fluctuations.Engineered as a MHz Crystal, this oscillator demonstrates superior resistance to single-event effects compared to commercial-grade alternatives, critical for navigation and telemetry systems.Operating at 30 MHz, the device provides stable clock references for phased array antennas and onboard data processing units in LEO satellites.With ±20ppm stability, it maintains synchronization accuracy during orbital thermal cycling, from eclipse transitions to direct solar exposure.The ±20ppm tolerance specification meets stringent requirements for deep space probe timing subsystems and interplanetary communication.Optimized with 10pF load capacitance, it minimizes power consumption while ensuring reliable start-up in vacuum conditions.The radiation-tolerant 70 Ohms ESR characteristic preserves signal quality despite cosmic ray exposure in GEO satellite applications.Utilizing Fundamental technology, it achieves the necessary spectral purity for synthetic aperture radar payloads and scientific instruments.Rated for -20°C ~ 70°C, the component withstands the extreme thermal variations encountered during launch and orbital operations.The Surface Mount configuration incorporates hermetic sealing to prevent outgassing in space vacuum environments.Housed in a 4-SMD, No Lead package, it meets NASA outgassing standards while providing mechanical stability during rocket vibration profiles.With 0.098" L x 0.079" W (2.50mm x 2.00mm) dimensions, the compact design enables high-density integration in cubesat and smallsat avionics.The 0.028" (0.70mm) low profile accommodates strict form factor requirements in satellite payload modules.
Product Attributes
- Product Status: Active
- Type: MHz Crystal
- Frequency: 30 MHz
- Frequency Stability: ±20ppm
- Frequency Tolerance: ±20ppm
- Load Capacitance: 10pF
- ESR (Equivalent Series Resistance): 70 Ohms
- Operating Mode: Fundamental
- Operating Temperature: -20°C ~ 70°C
- Ratings: -
- Mounting Type: Surface Mount
- Package / Case: 4-SMD, No Lead
- Size / Dimension: 0.098" L x 0.079" W (2.50mm x 2.00mm)
- Height - Seated (Max): 0.028" (0.70mm)
