EDAC Inc.
845-084-500-804
EDAC Inc.
845 HIGH TEMP' SERIES (.100" (2.
Reference Price (USD)
1+
$158.82200
500+
$157.23378
1000+
$155.64556
1500+
$154.05734
2000+
$152.46912
2500+
$150.8809
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
845-084-500-804
$158.82
Product details

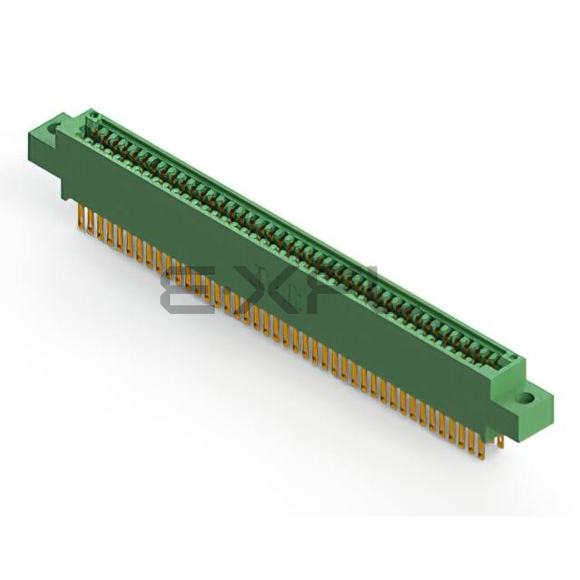

The 845-084-500-804 by EDAC Inc. redefines performance standards in Card Edge Connectors - Edgeboard Connectors for automotive electronics. Specifically engineered for in-vehicle networks, this connector exceeds AEC-Q200 qualification requirements for harsh automotive environments.Supporting Non Specified - Dual Edge applications, the connector features anti-fretting design. The multi-point contact system prevents micro-motion induced wear in vibration-prone installations.The Female configuration includes tactile engagement feedback. Audible click and 5N snap force provide positive mating confirmation in low-visibility conditions.With 42 contacts per row, the design optimizes signal routing. Alternate ground contacts provide return paths every 0.100" for EMI control.The 84 contact arrangement supports automotive Ethernet. Impedance-controlled differential pairs maintain 100 10% across all mating conditions.Compatible with 0.054" ~ 0.070" (1.37mm ~ 1.78mm) cards, the connector features tapered entry. This self-centering design compensates for 0.5mm card misalignment during assembly.The 2 row configuration includes power contacts. These 3A-rated contacts feature 50% larger cross-section for reduced voltage drop.The 0.100" (2.54mm) pitch design enables miniaturization without compromising reliability. Micro-machined contacts maintain precise alignment despite thermal cycling.Dual readout capability supports automotive diagnostic systems. Dedicated sense contacts provide real-time connection integrity monitoring.The Through Hole version includes IP6K9K sealing. Overmolded gaskets prevent water ingress during high-pressure vehicle washes.Solder Eyelet(s) process is compatible with automotive soldering profiles. The thermal mass design prevents tombstoning during reflow up to 260 C peak temperature.The Copper Alloy contacts exhibit excellent stress relaxation resistance. After 1,000 hours at 150 C, contact force remains >75% of initial value.Gold plating provides superior corrosion resistance. Testing per ISO 9227 shows no degradation after 96 hours salt spray exposure.With 10.0µin (0.25µm) gold plating, the contacts achieve <10m initial resistance. This low resistance minimizes power loss in 48V mild hybrid systems.The Cantilever design includes redundant contact points. This dual-touch system maintains conductivity even if one contact point becomes contaminated.The Green housing incorporates UV stabilizers for outdoor exposure. Colorfast testing shows E<1 after 1,000 hours Xenon arc exposure.Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia includes anti-rotation tabs. These positive locking features prevent connector movement during vehicle vibration.Rated for -40°C ~ 125°C, the connector uses automotive-grade materials. The housing maintains mechanical integrity from -40 C cold starts to 125 C under-hood temperatures.
Product Attributes
- Product Status: Active
- Card Type: Non Specified - Dual Edge
- Gender: Female
- Number of Positions/Bay/Row: 42
- Number of Positions: 84
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 2
- Pitch: 0.100" (2.54mm)
- Read Out: Dual
- Features: -
- Mounting Type: Through Hole
- Termination: Solder Eyelet(s)
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Contact Type: Cantilever
- Color: Green
- Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
- Operating Temperature: -40°C ~ 125°C
