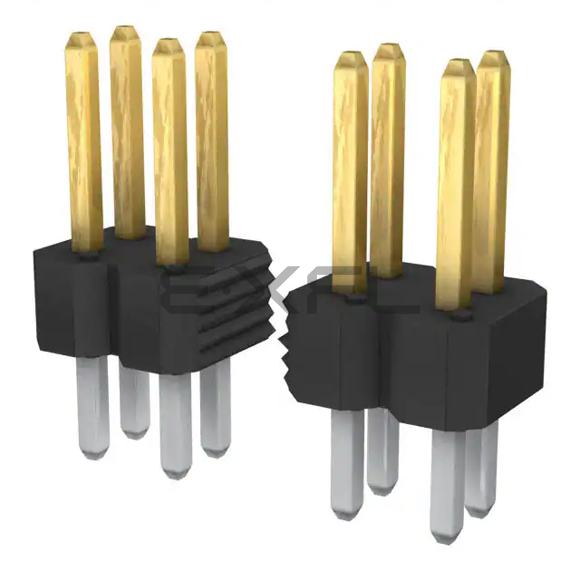

77313-802-66LF

Product details

Product Attributes

• Product Status: Active
• Connector Type: Header, Breakaway
• Contact Type: Male Pin
• Pitch - Mating: 0.100" (2.54mm)
• Number of Positions: 66
• Number of Rows: 2
• Row Spacing - Mating: 0.100" (2.54mm)
• Number of Positions Loaded: All
• Style: Board to Board or Cable
• Shrouding: Unshrouded
• Mounting Type: Through Hole
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Length - Mating: 0.230" (5.84mm)
• Contact Length - Post: 0.135" (3.43mm)
• Overall Contact Length: 0.465" (11.81mm)
• Insulation Height: 0.100" (2.54mm)
• Contact Shape: Square
• Contact Finish - Mating: Gold or Gold, GXT™
• Contact Finish Thickness - Mating: 15.0µin (0.38µm)
• Contact Finish - Post: Tin
• Contact Material: Phosphor Bronze
• Insulation Material: Thermoplastic
• Features: -
• Operating Temperature: -65°C ~ 130°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Black
• Current Rating (Amps): 3A per Contact
• Voltage Rating: -
