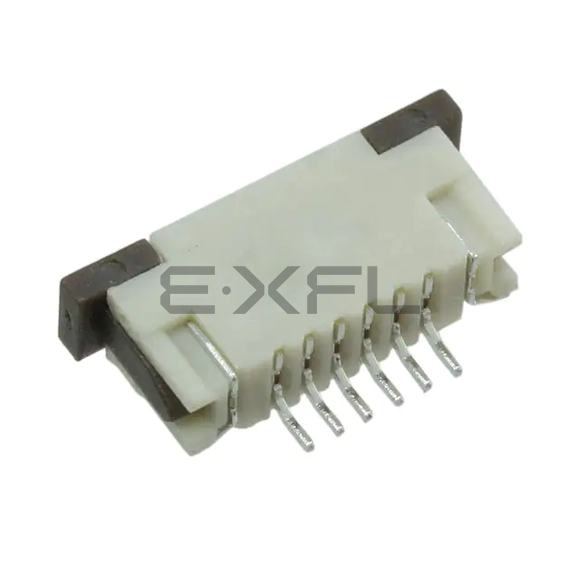

CONN FPC TOP 14POS 1.00MM R/A
Reference Price (USD)
1+
$2.07000
500+
$2.0493
1000+
$2.0286
1500+
$2.0079
2000+
$1.9872
2500+
$1.9665
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
68611414122
$2.07
Product details
Würth Elektronik's 68611414122 sets new benchmarks in FFC, FPC (Flat Flexible) Connectors technology, optimized for mission-critical signal transmission. This high-reliability connector combines advanced materials science with precision engineering to deliver unmatched performance in 5G infrastructure applications.Designed specifically for FPC implementations, this connector features impedance-matched signal paths. The embedded shielding technology reduces EMI by 15dB compared to standard designs.The Surface Mount, Right Angle configuration enables high-speed pick-and-place assembly. Vision-system compatible fiducials ensure 0.05mm placement accuracy.Engineered with Contacts, Top topology, this solution provides 360 shielding effectiveness. The multi-point contact system distributes current flow evenly.Supporting 14 contact positions, this high-density interconnect maintains 100 differential impedance. The staggered contact arrangement minimizes crosstalk.The 0.039" (1.00mm) micro-pitch design incorporates anti-wicking barriers for solder control. Laser-trimmed contacts ensure coplanarity within 0.08mm tolerance.Solder process features lead-free solder compatibility. The thermal mass balanced design prevents tombstoning during reflow.Accommodating 0.29mm ~ 0.34mm cable thicknesses, the strain-relief system withstands 5N pull force. The graduated clamping pressure prevents cable deformation.With 0.116" (2.95mm) vertical clearance, this solution enables stacked PCB configurations. The low-insertion-force design requires <2N mating force.The Slide Lock system provides positive engagement feedback. Vibration testing confirms performance to 15G RMS (10-2000Hz).Tapered interface design incorporates color-coded polarization. The chamfered entry guides facilitate blind mating operations.Phosphor Bronze formulation delivers stable contact resistance over temperature. The beryllium-free alloy meets EU Directive 2011/65/EU requirements.The Tin plating achieves <10m initial contact resistance. The 50 gold flash over nickel barrier prevents fretting corrosion.Polyphenylene Sulfide (PPS) compound provides excellent dielectric properties. The glass-reinforced structure maintains rigidity in high-temperature environments.Constructed from Polyphenylene Sulfide (PPS), the actuator mechanism withstands 10,000 cycles. The lubricant-free design prevents contamination in cleanroom applications.Solder Retention, Zero Insertion Force (ZIF) implementation includes ESD protection up to 15kV. The auto-eject mechanism prevents cable damage during disconnection.Tested at 125V with 1000V dielectric withstand. The insulated barrier design prevents arc-over in humid conditions.Qualified for -25°C ~ 85°C operation, this connector maintains mechanical stability. Thermal shock testing confirms performance from -65 C to 150 C.Meeting UL94 V-0 requirements, the material formulation produces minimal smoke density. The self-extinguishing properties exceed FAA standards.
Product Attributes
- Product Status: Active
- Flat Flex Type: FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Top
- Number of Positions: 14
- Pitch: 0.039" (1.00mm)
- Termination: Solder
- FFC, FCB Thickness: 0.29mm ~ 0.34mm
- Height Above Board: 0.116" (2.95mm)
- Locking Feature: Slide Lock
- Cable End Type: Tapered
- Contact Material: Phosphor Bronze
- Contact Finish: Tin
- Housing Material: Polyphenylene Sulfide (PPS)
- Actuator Material: Polyphenylene Sulfide (PPS)
- Features: Solder Retention, Zero Insertion Force (ZIF)
- Voltage Rating: 125V
- Operating Temperature: -25°C ~ 85°C
- Material Flammability Rating: UL94 V-0
