630-21W4650-3N6
EDAC Inc.
630-21W4650-3N6
EDAC Inc.

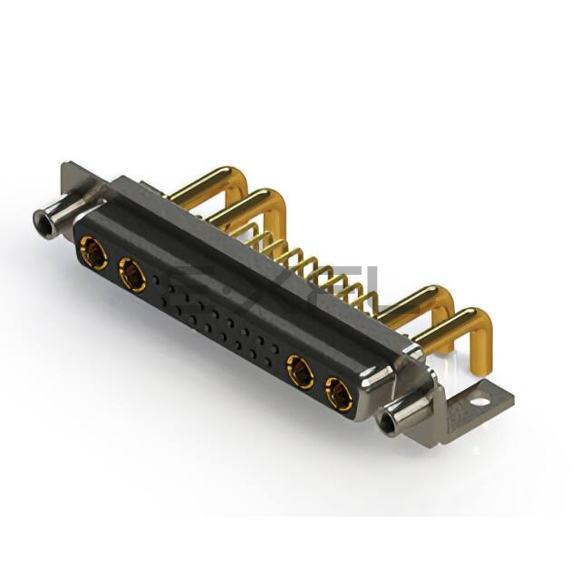

CONN D-SUB RCPT 21POS R/A SLDR
Reference Price (USD)
1+
$28.53188
500+
$28.2465612
1000+
$27.9612424
1500+
$27.6759236
2000+
$27.3906048
2500+
$27.105286
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
630-21W4650-3N6
$28.53
Product details
Optimized for railway signaling systems, EDAC Inc.'s 630-21W4650-3N6 D-Sub Connectors meets EN 50155 standards while withstanding 15G shock and 5G vibration. The robust design maintains signal integrity in electromagnetic environments up to 100V/m RF interference.The D-Sub, Combo configuration features double-locking mechanisms that prevent accidental disconnection in moving vehicles.Receptacle, Female Sockets contacts employ self-cleaning wiping action that maintains <20m resistance in dusty environments.The 21 (17 + 4 Power) layout includes segregated high-voltage and signal contacts with 8mm creepage distance.Precision-machined 2 contact arrays maintain alignment within 0.2mm during 50G shock events.Through Hole, Right Angle variant incorporates vibration-resistant hardware that maintains torque retention after 10 million stress cycles.The 4 (DC, C) - 21WA4 design provides 80dB shielding effectiveness from 10kHz to 6GHz per EN 50121-4.Signal and Power implementation uses nickel-cobalt alloys that maintain spring properties at -40 C to +125 C operating range.The Mating Side (4-40) system enables IP69K-rated sealing that withstands high-pressure washdown procedures.Our Solder process creates crimp connections that survive 1000 thermal shock cycles from -40 C to +125 C.Steel, Nickel Plated demonstrates >500-hour resistance to railway lubricants and cleaning agents.The Gold surface treatment maintains <15m resistance after 1000 hours salt spray exposure.Precision-controlled 30.0µin (0.76µm) ensures proper wear resistance during 25,000 mating cycles.All materials exceed UL94 V-0 requirements per EN 45545-2 for railway applications.The 5A, 30A design incorporates parallel contact paths that maintain continuity during vibration.0.370" (9.40mm) dimensional control ensures proper clearance for 5mm thick cable insulation.Board Lock include integrated transient suppressors that protect against 1kV/500A surge pulses.
Product Attributes
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 21 (17 + 4 Power)
- Number of Rows: 2
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 4 (DC, C) - 21WA4
- Contact Type: Signal and Power
- Flange Feature: Mating Side (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 30A
- Backset Spacing: 0.370" (9.40mm)
- Features: Board Lock
