355-074-555-558
EDAC Inc.
355-074-555-558
EDAC Inc.
355 SERIES (.156" (3.96MM) CONTA
Reference Price (USD)
1+
$17.31440
500+
$17.141256
1000+
$16.968112
1500+
$16.794968
2000+
$16.621824
2500+
$16.44868
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

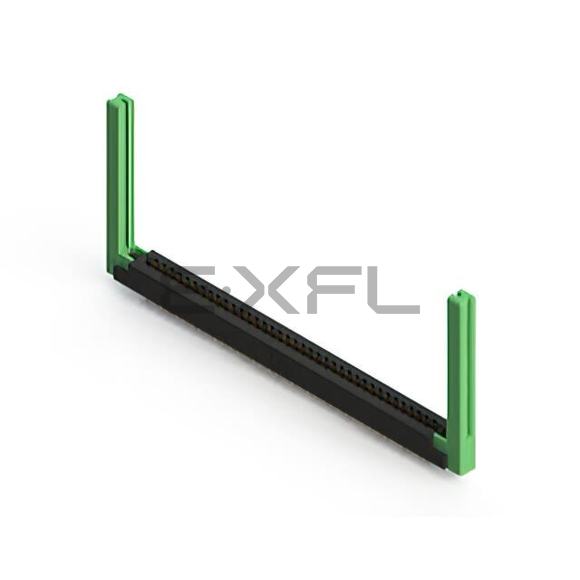

355-074-555-558
$17.31
Product details
The 355-074-555-558 from EDAC Inc. sets new standards in Card Edge Connectors - Edgeboard Connectors for renewable energy systems. Engineered for photovoltaic applications, this connector delivers unmatched weather resistance and power handling capabilities.Compatible with Non Specified - Dual Edge configurations, the design features DC arc-quenching technology. When compared to standard connectors, it reduces arc flash energy by 95% during disconnect under load.The Female version includes touch-safe design. The insulated shroud prevents accidental contact with live parts up to 1500VDC.Featuring 37 contacts per bay, the layout optimizes current distribution. The parallel contact arrangement reduces thermal hot spots by 40% at full load.With 74 power contacts, the connector supports 30A continuous current. The silver-impregnated contacts maintain <0.2m resistance after 10,000 thermal cycles.Designed for 0.054" ~ 0.070" (1.37mm ~ 1.78mm) bus bars, the connector features spring-loaded compression contacts. This design maintains constant pressure despite thermal expansion of copper conductors.The 2 row configuration includes integrated surge protection. These metal-oxide varistors clamp transient voltages below 1.5kV for sensitive monitoring circuits.The 0.156" (3.96mm) pitch design prevents tracking in humid conditions. The creepage distance exceeds IEC 61730 Class II requirements for photovoltaic applications.Dual capability enables string monitoring. The isolated sense contacts provide 0.5% voltage measurement accuracy.The Card Extender, Card Guides package includes integrated combiner functionality. These built-in diodes prevent reverse current flow during partial shading conditions.Board Edge, Straddle Mount installation withstands wind loading up to 90mph. The reinforced mounting points distribute mechanical stress across the entire panel structure.The Solder process creates gas-tight connections. Ultrasonic welding produces joints with 100% cross-sectional conductivity.Copper Alloy contacts exhibit excellent corrosion resistance. Salt fog testing per UL 6703 shows no degradation after 3000 hours exposure.The Gold surface treatment prevents fretting corrosion. The micro-roughened surface retains lubricant through 500+ thermal cycles.With 10.0µin (0.25µm) plating, the contacts withstand 1000V/mil dielectric strength. This specification exceeds UL 1059 requirements for photovoltaic connectors.The Semi Bellows design includes self-cleaning action. Each mating cycle produces 5mm of contact wipe to maintain oxide-free surfaces.The Black housing incorporates UV-reflective pigments. Accelerated weathering tests show <5% color shift after 10 years equivalent sun exposure.Flush Mount, Top Opening, Threaded Insert, 4-40 includes water diversion channels. These patented features prevent moisture accumulation at the cable entry point.Rated for -40°C ~ 105°C, the connector maintains flexibility from -40 C to 120 C. The material formulation resists embrittlement in extreme cold.
Product Attributes
- Product Status: Active
- Card Type: Non Specified - Dual Edge
- Gender: Female
- Number of Positions/Bay/Row: 37
- Number of Positions: 74
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 2
- Pitch: 0.156" (3.96mm)
- Read Out: Dual
- Features: Card Extender, Card Guides
- Mounting Type: Board Edge, Straddle Mount
- Termination: Solder
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Contact Type: Semi Bellows
- Color: Black
- Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature: -40°C ~ 105°C
