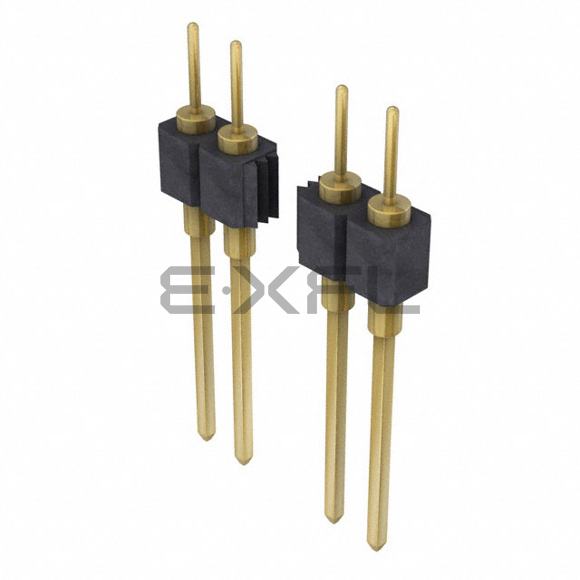

353-10-138-00-001101

Product details

Product Attributes

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.100" (2.54mm)
• Number of Positions: 38
• Number of Rows: 1
• Row Spacing - Mating: -
• Number of Positions Loaded: All
• Style: Board to Board
• Shrouding: Unshrouded
• Mounting Type: Through Hole
• Termination: Wire Wrap
• Fastening Type: Push-Pull
• Contact Length - Mating: 0.147" (3.73mm)
• Contact Length - Post: 0.510" (12.95mm)
• Overall Contact Length: 0.880" (22.36mm)
• Insulation Height: 0.116" (2.95mm)
• Contact Shape: Circular, Square
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 10.0µin (0.25µm)
• Contact Finish - Post: Gold
• Contact Material: Brass
• Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
• Features: -
• Operating Temperature: -55°C ~ 125°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Black
• Current Rating (Amps): 3A
• Voltage Rating: 150VDC
