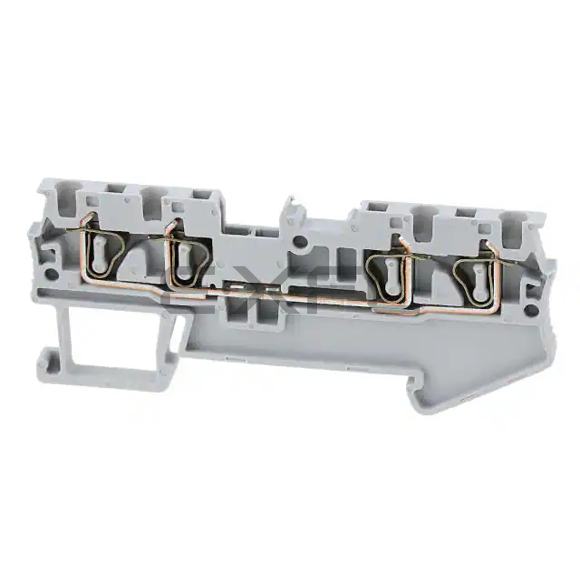

3213124
Phoenix Contact
3213124
Phoenix Contact
CONN TERM BLK FEED THRU 16-28AWG
Reference Price (USD)
1+
$2.32000
500+
$2.2968
1000+
$2.2736
1500+
$2.2504
2000+
$2.2272
2500+
$2.204
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
3213124
$2.32
Product details
Designed for automotive electronics, the 3213124 by Phoenix Contact sets new standards for Terminal Blocks - Din Rail, Channel reliability in vehicle applications. The vibration-resistant construction and extended temperature range make it ideal for engine compartment and chassis-mounted installations.The Feed Through architecture provides essential ground path redundancy for automotive safety systems. The dual-isolation design prevents single-point failures in critical circuits.With 4 contact points, this terminal block accommodates complex automotive wiring harnesses. The high-density layout reduces bulkhead penetration points by 40%.The 1 tiered configuration enables logical separation of power and signal circuits. This arrangement minimizes EMI coupling between sensitive automotive networks.The 3.5mm terminal size optimizes current density for automotive power distribution. The tin-plated brass construction resists fretting corrosion in high-vibration environments.Utilizing Push In, Spring technology, the connection system withstands 50G mechanical shock loads. The self-adjusting contact pressure compensates for thermal cycling effects.Rated for 17.5 A continuous load, the terminal meets automotive peak current requirements. The thermal mass design handles engine compartment temperatures up to 125 C.The 500V dielectric strength ensures reliable operation in 48V mild hybrid systems. The insulation material maintains properties across -40 C to 150 C temperature swings.UL-recognized for 10 A operation, the terminal block exceeds typical automotive electrical system demands. The current derating curve remains linear up to 105 C ambient.Tested at 300V per UL standards, the component withstands load dump transients common in vehicle electrical systems. The insulation resistance exceeds 100M after humidity exposure.Compatible with 16-28 AWG automotive-grade wiring, the terminals accommodate both thin-wall and high-temperature conductors. The strain relief feature prevents wire fatigue at connection points.The Gray housing meets automotive OEM color specification requirements. The matte finish reduces glare for improved service visibility.
Product Attributes
- Product Status: Active
- Type: Feed Through
- Disconnect Type: -
- Number of Positions: 4
- Number of Levels: 1
- Terminal - Width: 3.5mm
- Termination Style: Push In, Spring
- Current - IEC: 17.5 A
- Voltage - IEC: 500V
- Current - UL: 10 A
- Voltage - UL: 300V
- Wire Gauge or Range - AWG: 16-28 AWG
- Wire Gauge or Range - mm²: 0.08-1.5mm²
- Features: -
- Color: Gray
- Fuse Type: -
