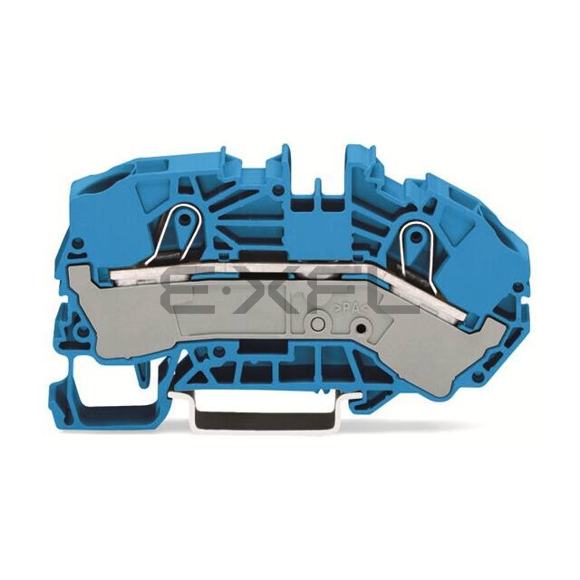

2016-7604
WAGO Corporation
2016-7604
WAGO Corporation
2-CONDUCTOR SUPPLY TERMINAL BLOC
Reference Price (USD)
1+
$9.29000
500+
$9.1971
1000+
$9.1042
1500+
$9.0113
2000+
$8.9184
2500+
$8.8255
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
2016-7604
$9.29
Product details
WAGO Corporation's 2016-7604 delivers breakthrough performance in Terminal Blocks - Din Rail, Channel for railway signaling systems. The vibration-resistant design and extended temperature range ensure reliable operation in trackside installations and rolling stock applications.Featuring Feed Through galvanic isolation, this terminal block prevents ground loop currents in distributed rail networks. The reinforced insulation exceeds EN 50155 requirements for railway applications.The 2 position configuration supports complex interlocking systems. Each contact features silver-doped copper alloy for optimal conductivity in humid environments.With 1 independent levels, the design separates traction power from sensitive control circuits. The vertical isolation barriers provide 8kV impulse withstand capability.The 12.0mm terminal size accommodates heavy-gauge feeder cables. The anti-loosening design maintains contact pressure under continuous vibration.Utilizing Push In, Spring technology, the connection system withstands 50G shock loads per IEC 61373. The tool-less design enables maintenance in confined equipment cabinets.Rated for 76 A continuous current, the terminal meets EN 50163 voltage system requirements. The thermal design handles 150% overload for 5 minutes without degradation.With 800V working voltage, the component exceeds catenary system requirements. The tracking resistance exceeds CTI 600 for reliable operation in polluted environments.Compatible with 6-20 AWG railway cables, the terminals feature integrated corrosion inhibitors. The dual-compression design prevents strand breakage in flexible conductors.The Blue housing meets railway industry visibility standards. The high-contrast design remains identifiable in low-light tunnel environments.
Product Attributes
- Product Status: Active
- Type: Feed Through
- Disconnect Type: -
- Number of Positions: 2
- Number of Levels: 1
- Terminal - Width: 12.0mm
- Termination Style: Push In, Spring
- Current - IEC: 76 A
- Voltage - IEC: 800V
- Current - UL: -
- Voltage - UL: -
- Wire Gauge or Range - AWG: 6-20 AWG
- Wire Gauge or Range - mm²: 0.5-16mm²
- Features: -
- Color: Blue
- Fuse Type: -
