19400240914
Reference Price (USD)
19400240914

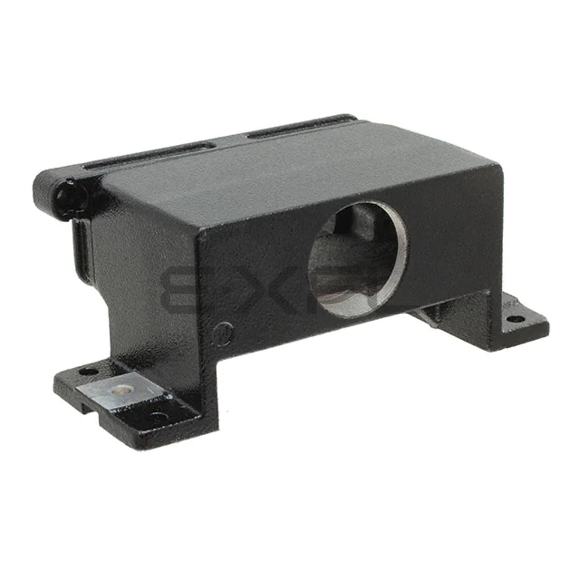

Product details
The Base - Panel Mount 90° configuration features hermetic sealing technology that maintains <1x10^-9 atm-cc/sec helium leak rate, suitable for vacuum chamber applications.
With Side Entry architecture, the connector supports blind-mate capabilities with 2mm alignment tolerance, critical for rapid field deployment scenarios.
Despite its compact 24B dimensions, the connector withstands 50G shock loads and 20G vibration per MIL-STD-202 standards.
The fail-safe Screw Locks on Hood design includes secondary retention that prevents accidental release under explosive decompression conditions.
The M50 interface incorporates anti-FOD features that prevent loose debris generation during repeated mating cycles.
Precision-machined to 8.508" L x 4.681" W x 3.465" H (216.10mm x 118.90mm x 88.00mm) specifications, the connector maintains impedance stability within 2% across all mated pairs.
Low-observable Black meets strict reflectivity requirements for stealth applications while maintaining visibility for maintenance.
IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof performance includes validation for salt fog exposure per MIL-STD-810 Method 509, ensuring operation in naval environments.
High-strength Aluminum, Die Cast composition provides RFI/EMI shielding effectiveness exceeding 90dB up to 18GHz frequency range.
Advanced Powder Coated provides tribological properties that reduce mating force while preventing cold welding in space applications.
Qualified for -40°C ~ 125°C extremes, the connector maintains signal integrity during rapid thermal transients up to 10 C/minute.
Product Attributes
- Product Status: Active
- Connector Type: Base - Panel Mount 90°
- Style: Side Entry
- Size: 24B
- Lock Location: Screw Locks on Hood
- Thread Size: M50
- Size / Dimension: 8.508" L x 4.681" W x 3.465" H (216.10mm x 118.90mm x 88.00mm)
- Housing Color: Black
- Features: -
- Ingress Protection: IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
- Housing Material: Aluminum, Die Cast
- Housing Finish: Powder Coated
- Operating Temperature: -40°C ~ 125°C
