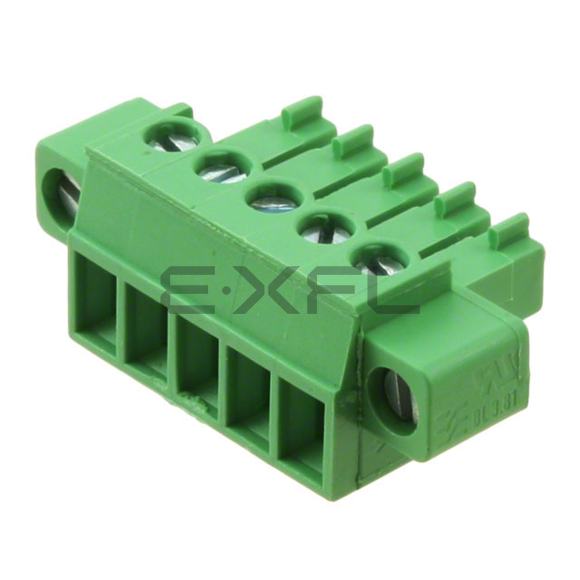

TERM BLOCK PLUG 5POS STR 3.81MM
Reference Price (USD)
1+
$5.78000
500+
$5.7222
1000+
$5.6644
1500+
$5.6066
2000+
$5.5488
2500+
$5.491
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
1793070000
$5.78
Product details
Optimized for automotive electronics, the 1793070000 from Weidmüller sets new benchmarks in Terminal Blocks - Headers, Plugs and Sockets reliability. This AEC-Q200 qualified solution addresses the unique challenges of electric vehicle power distribution systems while ensuring signal integrity in harsh automotive environments.The Plug, Female Sockets configuration incorporates automotive-grade sealing for under-hood installations. Compared to commercial components, it provides IP6K9K protection against dust and high-pressure washdowns.Available in 5 positions, the design supports 48V mild hybrid architectures. The dual-row arrangement minimizes voltage drop in high-current battery connections.5 positions per level optimize packaging density in ECU applications. The staggered contact pattern reduces mutual inductance between adjacent power and signal lines.The 1 stacking capability enables three-dimensional wiring harness routing. This approach reduces cable bulk by 30% in door and roof lining applications.Featuring 0.150" (3.81mm) pitch spacing, the design prevents tracking in high-humidity conditions. The creepage distance exceeds LV214 requirements for 600V systems.With 180° entry options, the connector system accommodates complex harness routing. The service-friendly design allows single-handed mating in confined spaces.The Screw - Clamping Yoke (Tension Sleeve) system ensures vibration-resistant connections meeting USCAR-2 standards. Accelerated life testing confirms performance beyond 25G vibration profiles.Free Hanging (In-Line) installation satisfies automotive module mounting requirements. The anti-rotation features prevent loosening under vehicle vibration spectra.Meeting 17.5A IEC standards, the design accommodates regenerative braking currents. The mass-termination capability supports automated harness production.The 320 V certification includes testing for partial discharge in high-voltage systems. The design exceeds 800V requirements for electric vehicle powertrains.Rated for 10 A continuous current, the contacts employ automotive-tested alloys. The material selection prevents stress relaxation in high-temperature engine compartments.The 300 V rating includes 150% design margin for load dump scenarios. The insulation system withstands 1000V transients per ISO 7637-2.Compatible with 16-28 AWG automotive-grade cables, the termination resists oil and coolant exposure. The flared entry guides prevent wire strand damage during assembly.The Green housing incorporates automotive OEM-specific color coding. The UV-stable material retains color fidelity after 3000 hours of xenon arc testing.Operating across -50°C ~ 120°C range, the materials meet extended automotive temperature profiles. Validation testing includes 1000 thermal shock cycles from -40 C to 150 C.Tin plating provides optimal performance for automotive electrical systems. The surface treatment resists fretting corrosion in vibration environments.The Mating Flange include automotive-specific safety interlocks. These prevent accidental disconnection during vehicle operation while enabling quick service disconnects.
Product Attributes
- Product Status: Active
- Type: Plug, Female Sockets
- Number of Positions: 5
- Positions Per Level: 5
- Number of Levels: 1
- Pitch: 0.150" (3.81mm)
- Header Orientation: -
- Plug Wire Entry: 180°
- Termination Style: Screw - Clamping Yoke (Tension Sleeve)
- Mounting Type: Free Hanging (In-Line)
- Current - IEC: 17.5A
- Voltage - IEC: 320 V
- Current - UL: 10 A
- Voltage - UL: 300 V
- Wire Gauge or Range - AWG: 16-28 AWG
- Wire Gauge or Range - mm²: 0.2-1.5mm²
- Color: Green
- Operating Temperature: -50°C ~ 120°C
- Contact Mating Finish: Tin
- Features: Mating Flange
