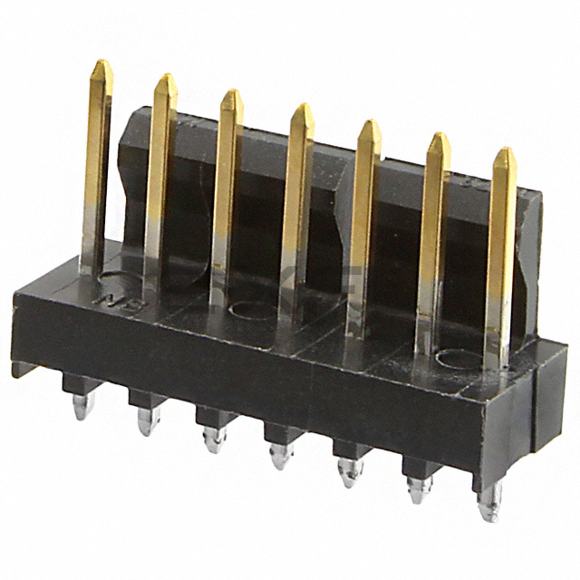

1718561007

Product details

Product Attributes

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.100" (2.54mm)
• Number of Positions: 7
• Number of Rows: 1
• Row Spacing - Mating: -
• Number of Positions Loaded: All
• Style: Board to Board or Cable
• Shrouding: Shrouded - 1 Wall
• Mounting Type: Through Hole
• Termination: Solder
• Fastening Type: Friction Lock
• Contact Length - Mating: 0.293" (7.45mm)
• Contact Length - Post: 0.092" (2.34mm)
• Overall Contact Length: 0.510" (12.95mm)
• Insulation Height: 0.322" (8.18mm)
• Contact Shape: Square
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 15.0µin (0.38µm)
• Contact Finish - Post: Tin
• Contact Material: Brass
• Insulation Material: Polyamide (PA), Nylon
• Features: -
• Operating Temperature: -
• Ingress Protection: -
• Material Flammability Rating: UL94 V-2
• Insulation Color: Black
• Current Rating (Amps): -
• Voltage Rating: -
