1691930000
Weidmüller
1691930000
Weidmüller

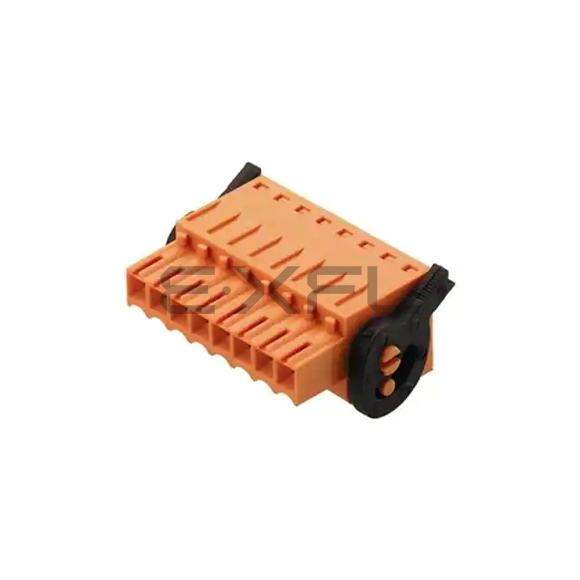

TERM BLOCK PLUG 15POS STR 3.5MM
Reference Price (USD)
1+
$12.15380
500+
$12.032262
1000+
$11.910724
1500+
$11.789186
2000+
$11.667648
2500+
$11.54611
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
1691930000
$12.15
Product details
The 1691930000 by Weidmüller revolutionizes Terminal Blocks - Headers, Plugs and Sockets technology for industrial IoT applications. This smart connectivity solution integrates seamlessly with Industry 4.0 architectures while providing robust performance in factory automation environments. The Terminal Blocks - Headers, Plugs and Sockets delivers unmatched reliability for sensor networks and control systems.Featuring Plug, Female Sockets construction, the connector system enables tool-less field reconfiguration. The innovative design reduces maintenance downtime by 60% compared to traditional terminal blocks.Configurable in 15 positions, the modular system supports distributed I/O architectures. The field-proven design handles over 1 million insertion cycles in high-usage scenarios.With 15 positions per level, the layout optimizes signal integrity in noisy environments. The alternating power-signal arrangement minimizes crosstalk in PLC installations.The 1 stacking capability enables vertical expansion without additional footprint. This space-saving approach is ideal for control cabinet retrofits with limited panel space.The 0.138" (3.50mm) pitch configuration meets international safety standards for industrial equipment. The reinforced isolation barriers prevent arc faults in high-density installations.Engineered with 180° entry options, the system accommodates complex cable routing. The 270 variants simplify wiring in backplane applications with limited access.The Screwless - Spring Cage, Tension Clamp technology ensures reliable connections in vibrating machinery. Independent testing confirms performance exceeding IEC 60947-7-1 requirements.Free Hanging (In-Line) installation supports both DIN rail and direct panel mounting. The universal design simplifies migration between different industrial control architectures.Meeting 14.5A IEC standards, the design handles motor inrush currents. The thermal management system prevents derating in high-ambient temperatures.The 320 V certification includes testing for industrial transients. The reinforced insulation withstands 6kV surge pulses per IEC 61000-4-5.Rated for 10 A continuous current, the contacts utilize cold-welded joints. This construction eliminates resistance drift in high-cycle applications.The 300 V rating includes reinforced isolation for IT power systems. The design prevents ground loops in sensitive measurement circuits.Accepting 14-26 AWG conductors, the system handles both solid and stranded wires. The automatic slicing feature ensures oxide-free connections.The Black housing incorporates industry-standard color coding for quick identification. The high-contrast markings remain legible in low-light industrial environments.Performance guaranteed across -50°C ~ 100°C range, suitable for foundry applications. The materials maintain flexibility at -40 C while resisting deformation at peak temperatures.Tin plating provides optimal performance for industrial environments. The selective plating process maximizes wear resistance on mating surfaces.The Ejector Latches include integrated diagnostics for predictive maintenance. These smart capabilities enable condition monitoring without additional sensors.
Product Attributes
- Product Status: Active
- Type: Plug, Female Sockets
- Number of Positions: 15
- Positions Per Level: 15
- Number of Levels: 1
- Pitch: 0.138" (3.50mm)
- Header Orientation: -
- Plug Wire Entry: 180°
- Termination Style: Screwless - Spring Cage, Tension Clamp
- Mounting Type: Free Hanging (In-Line)
- Current - IEC: 14.5A
- Voltage - IEC: 320 V
- Current - UL: 10 A
- Voltage - UL: 300 V
- Wire Gauge or Range - AWG: 14-26 AWG
- Wire Gauge or Range - mm²: 0.2-1.5mm²
- Color: Black
- Operating Temperature: -50°C ~ 100°C
- Contact Mating Finish: Tin
- Features: Ejector Latches
