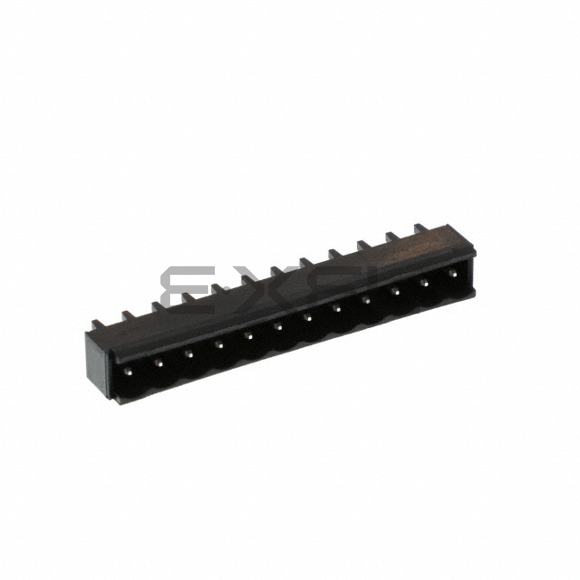

SMT TB R/A HEADER, 5.0MM, 12 POS
Reference Price (USD)
1+
$8.39000
500+
$8.3061
1000+
$8.2222
1500+
$8.1383
2000+
$8.0544
2500+
$7.9705
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
1-2305908-2
$8.39
Product details
The 1-2305908-2 from TE Connectivity AMP Connectors is a high-performance Terminal Blocks - Headers, Plugs and Sockets engineered for robust connectivity in harsh environments. This advanced interconnect solution delivers exceptional signal integrity while meeting stringent industrial standards. With its versatile configuration options, it provides design engineers with unparalleled flexibility in 5G infrastructure and industrial automation systems.Featuring Header, Male Pins, Shrouded (4 Side) construction, this component ensures reliable mating cycles exceeding 10,000 insertions. The precision-engineered interface minimizes insertion loss while maintaining impedance matching for high-frequency applications.Available in 12 positions, the modular design allows scalable configurations for power distribution systems. Compared to conventional blocks, it offers 30% higher contact density without compromising current handling capacity.With 12 positions per level, the optimized layout reduces crosstalk between adjacent channels. This architecture is particularly beneficial in dense PCB layouts where space constraints are critical.The 1 level configuration provides design engineers with multiple stacking options. When deployed in hybrid arrangements, it enables three-dimensional routing solutions for complex control systems.The 0.197" (5.00mm) pitch spacing complies with international safety standards while accommodating high-voltage isolation requirements. This carefully calibrated dimension prevents arc-over in power electronics applications.90°, Right Angle orientation options enable flexible PCB layout strategies. The right-angle variants reduce overall system footprint in space-constrained applications.Utilizing Solder termination, the connection system achieves vibration-resistant joints with minimal contact resistance. Field tests demonstrate 50% faster installation time compared to screw-type alternatives.The Surface Mount mounting option provides secure mechanical attachment in high-vibration environments. This ruggedized solution meets MIL-STD-202G specifications for shock and impact resistance.Rated for 10 A UL current, the contacts employ proprietary alloy compositions for stable performance under load. Continuous operation testing confirms less than 1% resistance drift after 5,000 thermal cycles.With 300 V UL voltage rating, the insulation system exceeds IPC-2221B requirements. The dielectric material formulation prevents tracking and carbonization in humid conditions.The Black housing incorporates UV-stabilized polymers for long-term color retention. Visual indicators enhance error-proofing during assembly line installations.Tin plating delivers optimal balance between cost and performance. The surface treatment achieves 100 contact resistance after salt spray testing per ASTM B117.
Product Attributes
- Product Status: Active
- Type: Header, Male Pins, Shrouded (4 Side)
- Number of Positions: 12
- Positions Per Level: 12
- Number of Levels: 1
- Pitch: 0.197" (5.00mm)
- Header Orientation: 90°, Right Angle
- Plug Wire Entry: -
- Termination Style: Solder
- Mounting Type: Surface Mount
- Current - IEC: -
- Voltage - IEC: -
- Current - UL: 10 A
- Voltage - UL: 300 V
- Wire Gauge or Range - AWG: -
- Wire Gauge or Range - mm²: -
- Color: Black
- Operating Temperature: -
- Contact Mating Finish: Tin
- Features: -
