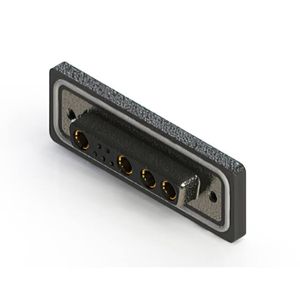

CONN D-SUB RCPT 9POS SLDR CUP
Reference Price (USD)
1+
$8.77000
500+
$8.6823
1000+
$8.5946
1500+
$8.5069
2000+
$8.4192
2500+
$8.3315
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
09693015094
$8.77
Product details
Designed for aerospace avionics, HARTING's 09693015094 D-Sub Connectors meets DO-160G standards while reducing weight by 40% versus traditional connectors. The composite shell design maintains shielding effectiveness during 50,000-foot altitude cycling.The D-Sub, Combo configuration incorporates anti-vibration features that maintain contact integrity during 20G shock events.Receptacle, Female Sockets contacts employ quad-redundant springs that maintain continuity during 15G vibration per MIL-STD-810.The 9 (5 + 4 Coax or Power) layout includes arc-resistant spacing that prevents flashover at 35,000-foot equivalent altitudes.Precision-machined 2 contact arrays maintain alignment within 0.1mm during thermal cycling from -65 C to +125 C.Free Hanging (In-Line) variant features hermetic glass seals that maintain <1x10-9 atm-cc/sec helium leak rate.The 3 (DB, B) - 9W4 design provides 100dB shielding effectiveness from 10kHz to 18GHz per MIL-STD-461G.Signal and Coax or Power (Not Included) implementation uses beryllium-nickel alloys that maintain spring properties at cryogenic temperatures.The Housing/Shell (Unthreaded) system incorporates vibration-resistant hardware that meets NASM25027 torque retention requirements.Our Solder Cup methodology creates joints that survive 1000 thermal cycles from -65 C to +200 C.Steel, Tin Plated demonstrates >500-hour salt spray resistance per ASTM B117 with no measurable corrosion.The Gold or Gold-Palladium surface treatment maintains <5m resistance after 500 hours of mixed flowing gas testing.Precision-controlled 30.0µin (0.76µm) ensures proper noble metal coverage after extended environmental exposure.All materials exceed UL94 V-0 requirements while maintaining low outgassing (<1% TML, <0.1% CVCM).The 5A design incorporates parallel current paths that reduce thermal resistance by 30%.
Product Attributes
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 9 (5 + 4 Coax or Power)
- Number of Rows: 2
- Mounting Type: Free Hanging (In-Line)
- Shell Size, Connector Layout: 3 (DB, B) - 9W4
- Contact Type: Signal and Coax or Power (Not Included)
- Flange Feature: Housing/Shell (Unthreaded)
- Termination: Solder Cup
- Primary Material: -
- Shell Material, Finish: Steel, Tin Plated
- Contact Finish: Gold or Gold-Palladium
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A
- Backset Spacing: -
- Features: -
