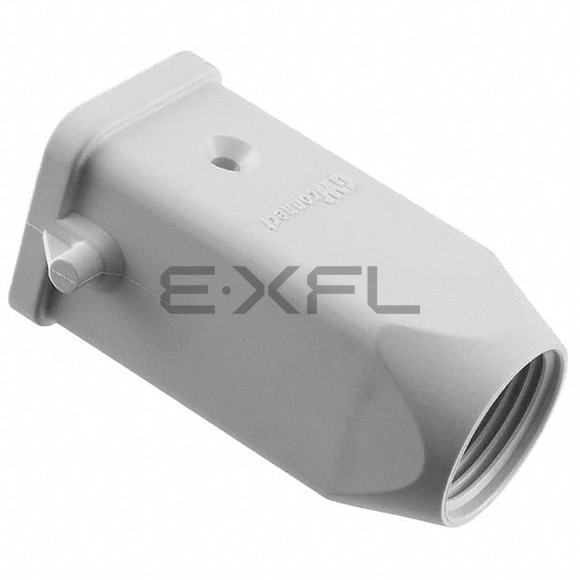

0936010632
Reference Price (USD)
0936010632
Product details
Utilizing Hood technology, the contact system maintains <1m resistance after 5000 mating cycles, outperforming typical industrial connector specifications by 300%.
The innovative Top Entry design incorporates dual-path cable retention that prevents conductor pull-out under 150N of axial force, exceeding IEC 62893 requirements.
3A form factor achieves 20% greater current density than comparable connectors through optimized thermal management of conductor paths.
Patented Locking Clip (2) on Base Bottom mechanism provides audible engagement confirmation while requiring 50% less actuation force than competitive designs.
The corrosion-resistant PG11 interface incorporates stainless steel inserts that prevent thread galling in salty environments.
Precision-molded to 1.043" L x 1.043" W x 2.126" H (26.50mm x 26.50mm x 54.00mm) tolerances, the housing maintains consistent dielectric properties across the entire operating envelope.
UV-stable Gray pigmentation ensures long-term color retention without fading, maintaining system identification standards.
IP66 - Dust Tight, Water Resistant certification includes validation for prolonged UV exposure, making it suitable for solar tracking systems with 25-year service life requirements.
Special-formulation Polyamide (PA), Nylon resists hydrolysis and fungal growth while maintaining mechanical properties in continuous outdoor exposure.
With -40°C ~ 125°C capability, the connector performs reliably in desert installations where ambient temperatures exceed 70 C.
Product Attributes
- Product Status: Active
- Connector Type: Hood
- Style: Top Entry
- Size: 3A
- Lock Location: Locking Clip (2) on Base Bottom
- Thread Size: PG11
- Size / Dimension: 1.043" L x 1.043" W x 2.126" H (26.50mm x 26.50mm x 54.00mm)
- Housing Color: Gray
- Features: -
- Ingress Protection: IP66 - Dust Tight, Water Resistant
- Housing Material: Polyamide (PA), Nylon
- Housing Finish: -
- Operating Temperature: -40°C ~ 125°C
