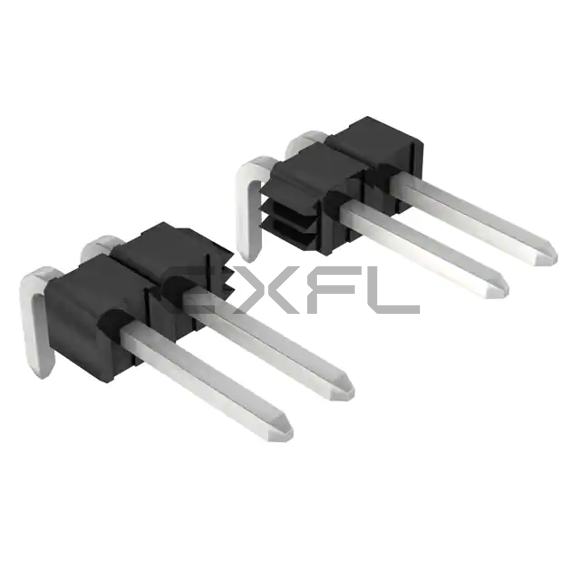

0022289051

Product details

Product Attributes

• Product Status: Active
• Connector Type: Header, Breakaway
• Contact Type: Male Pin
• Pitch - Mating: 0.100" (2.54mm)
• Number of Positions: 5
• Number of Rows: 1
• Row Spacing - Mating: -
• Number of Positions Loaded: All
• Style: Board to Board or Cable
• Shrouding: Unshrouded
• Mounting Type: Through Hole, Right Angle
• Termination: Kinked Pin, Solder
• Fastening Type: Push-Pull
• Contact Length - Mating: 0.324" (8.23mm)
• Contact Length - Post: 0.135" (3.43mm)
• Overall Contact Length: -
• Insulation Height: 0.098" (2.50mm)
• Contact Shape: Square
• Contact Finish - Mating: Tin
• Contact Finish Thickness - Mating: 100.0µin (2.54µm)
• Contact Finish - Post: Tin
• Contact Material: -
• Insulation Material: Polyamide (PA), Nylon, Glass Filled
• Features: -
• Operating Temperature: -
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Black
• Current Rating (Amps): -
• Voltage Rating: -
